Adam Audio T7V

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

TECHNICAL DATA

General Data

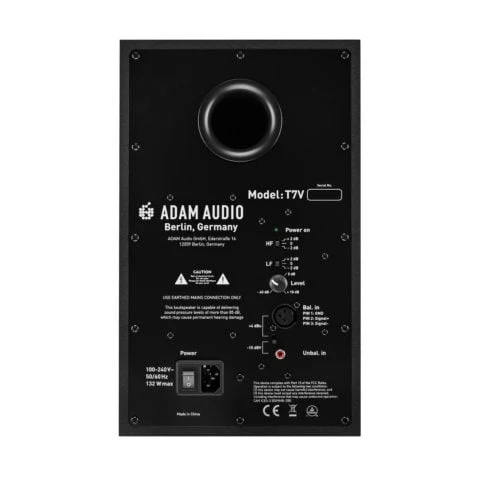

• Panel: Rear
• Max. Power Consumption: 132 W
• Weight: 15.7 lbs (7.1 kg)
• Height x Width x Depth: 13.7″ x 8.3″ x 11.5” ( 347 mm x 210 mm x 293 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Quick Start Guide

Audio Input Connectors

• Analog: XLR / RCA
• Input Impedance: 10 kOhm / 20 kOhm

Amplification

• Woofer
  • Amplifier Type: PWM
  • Amp. Power RMS: 50 W
• Tweeter
  • Amplifier Type: PWM
  • Amp. Power RMS: 20 W

Acoustics

• Frequency Response: 39 Hz – 25 kHz (-6 dB)
• THD > 80 Hz: 0.5 %
• Max. SPL per pair at 1 m: ≥110 dB
• Crossover Frequency: 2.6 kHz

Drivers

• Woofer
  • Basket Diameter: 7″
  • Voice Coil Diameter: 1″
  • Cone Material: Polypropylene
• Tweeter
  • Type: U-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equiv. Diaphragm Diameter: 1.9″ (48 mm)
  • Velocity Transform Ratio: 4 to 1
  • Diaphragm Weight: 0.17 g
  • Waveguide: HPS

Control Options

• Input Sensitivity: -10 to +4 dB
• Gain: Yes
• High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
• Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB
