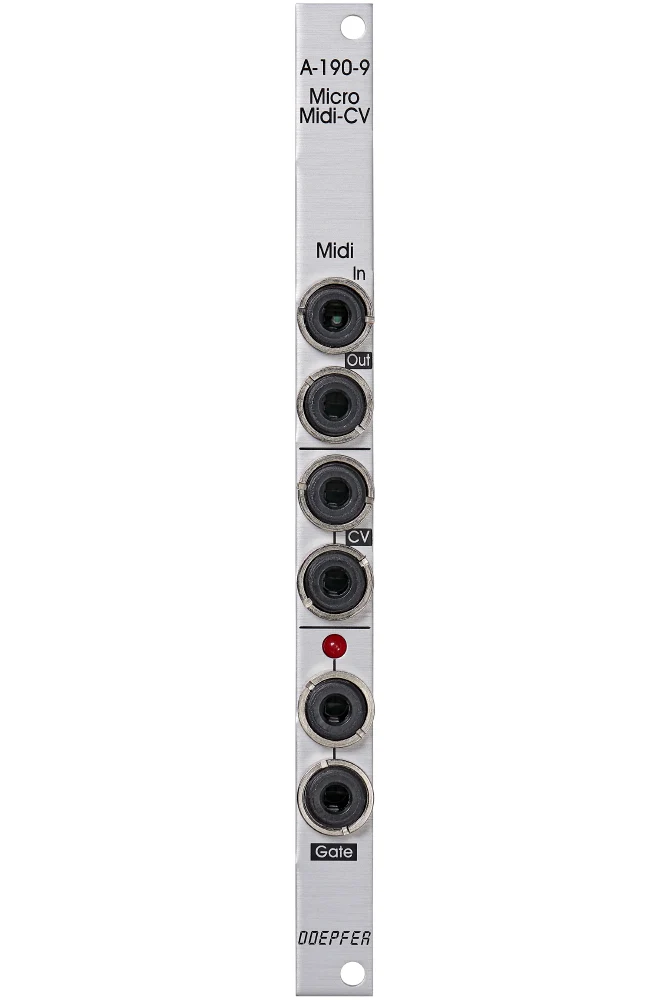

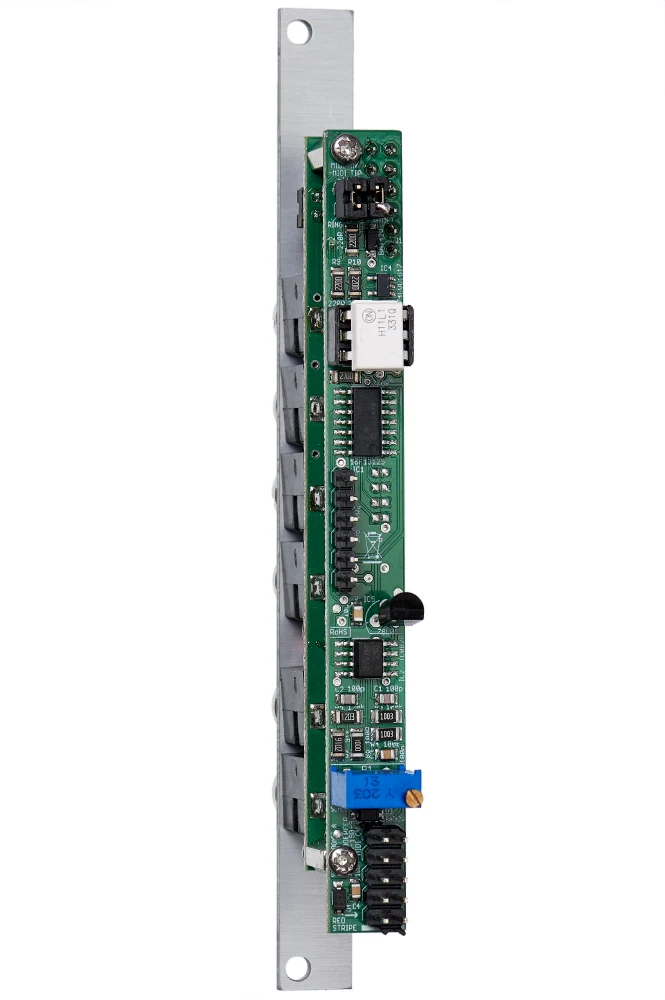

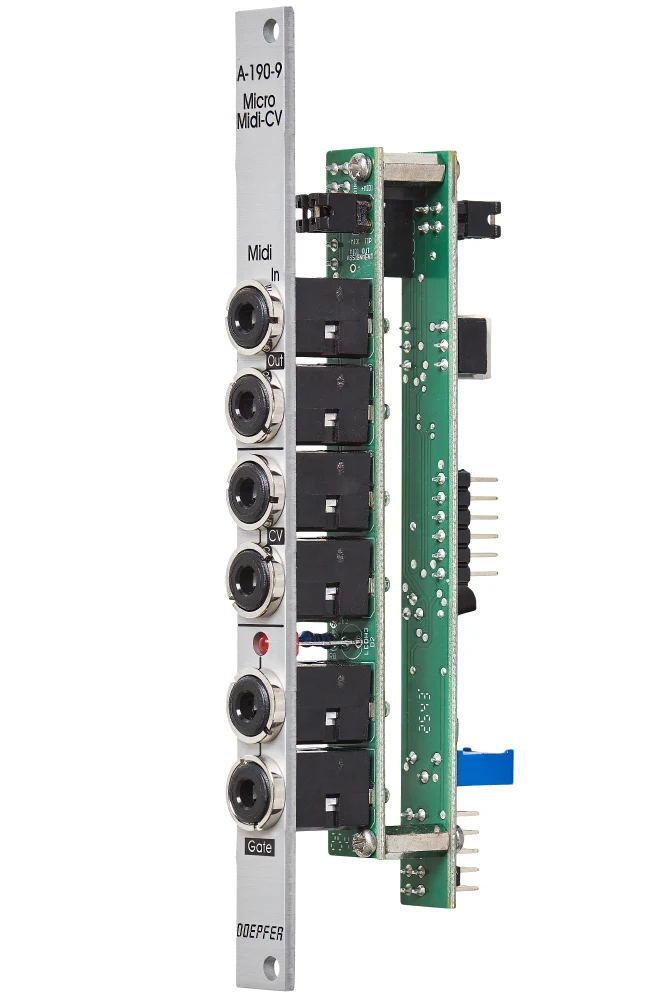

Doepfer A-190-9 Micro MIDI-to-CV/Gate Interface

Overview:
• simple monophonic midi-to-CV/Gate interface
• 3.5 mm stereo socket for MIDI input (TRS MIDI Type A and B, switchable via jumpers)
• Fixed to MIDI channel 1, but can be switched to a different MIDI channel via solder points
• The MIDI input can be internally normaled to another module's internal MIDI output (e.g.,
the quantizer for the A-155-2 sequencer)
• LED display for gate status
• Two Gate and CV outputs
• Gate level 0/+10V
• CV output range 0...+5V

Applications:

• Perfect for compact rigs, offering essential CV and Gate outputs
to control any Eurorack System

Specifications:

• Width: 2hp
• Depth: 45mm
• Power consumption: +30mA (+12V) / -10mA (-12V)
• Ref: A-190-9 / A-190v
