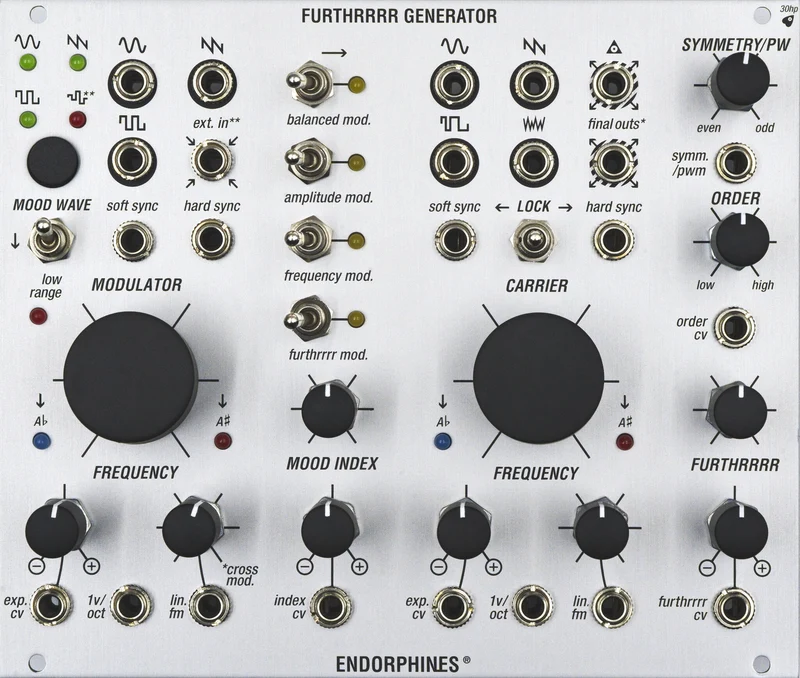

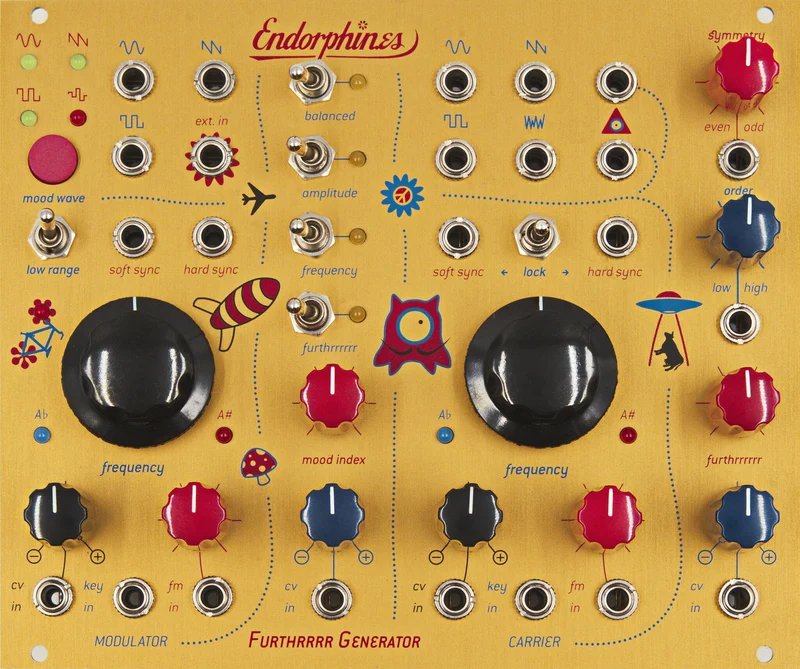

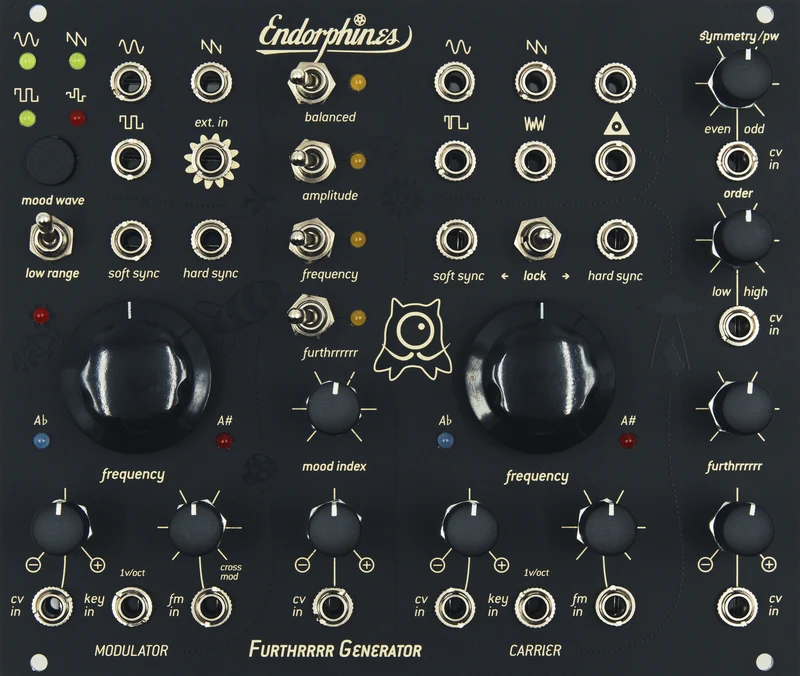

Endorphin.es Furthrrrr Generator Dual VCO

• all analog signal path inspired by & based upon famous westcoast synthesis – a module in the tradition of harmonic generation based on additive synthesis

• 2 discrete OTA triangle-core VCOs both with hard- (resetable) and soft- (inverting) syncs. The cores are self made custom encapsulated circuits with decent results of tracking (up to 6 octaves) as well as fine temperature stability

• multi-turn frequency knobs sweep up to 10 octaves

• simple and efficient oscillator tuners

• Selectable tracking (1 or 1.2 v/oct) by setting a jumper (we believe at last a few wigglers will appreciate that)

• instant thru-zero linear FM with the Strong-Zero VCO core update

• deep, metallic timbres, entirely new sphere of sounds from light whistles to weird noises

• together with Grand Terminal creates powerful 2-operator modular FM-synth

Power consumption:

• 180 mA +12V

• 215 mA -12V

• 0 mA 5V



  Dimensions:

• 30 HP

• 26 mm deep

More information you can find here: Furthrrrr Generator Dual VCO
