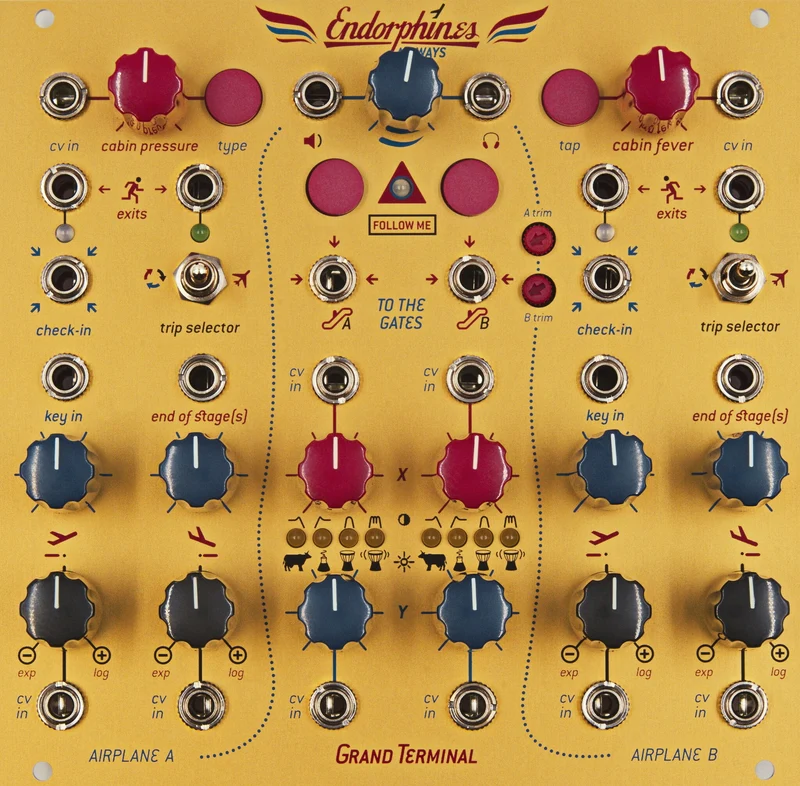

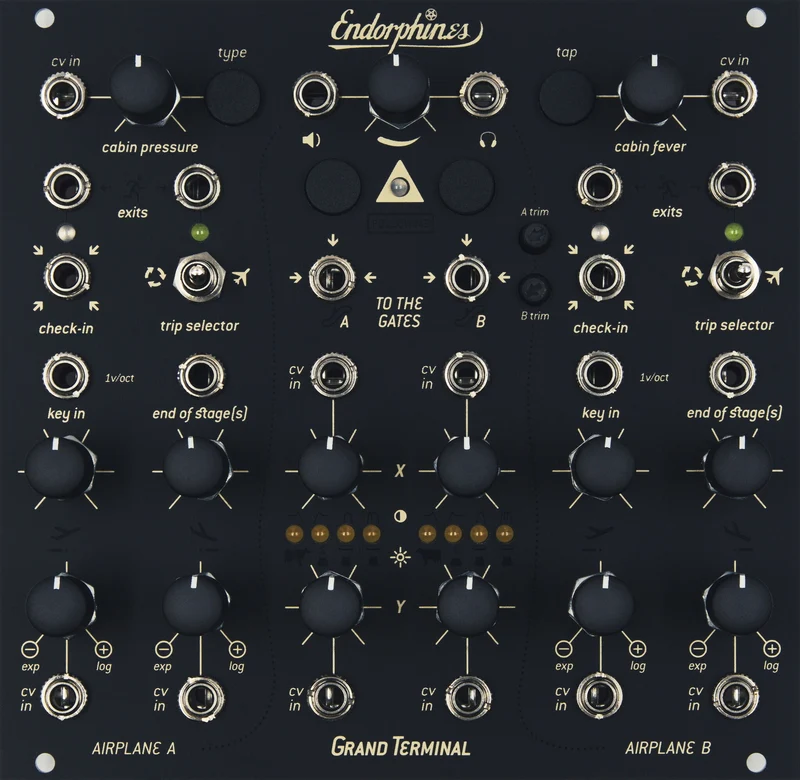

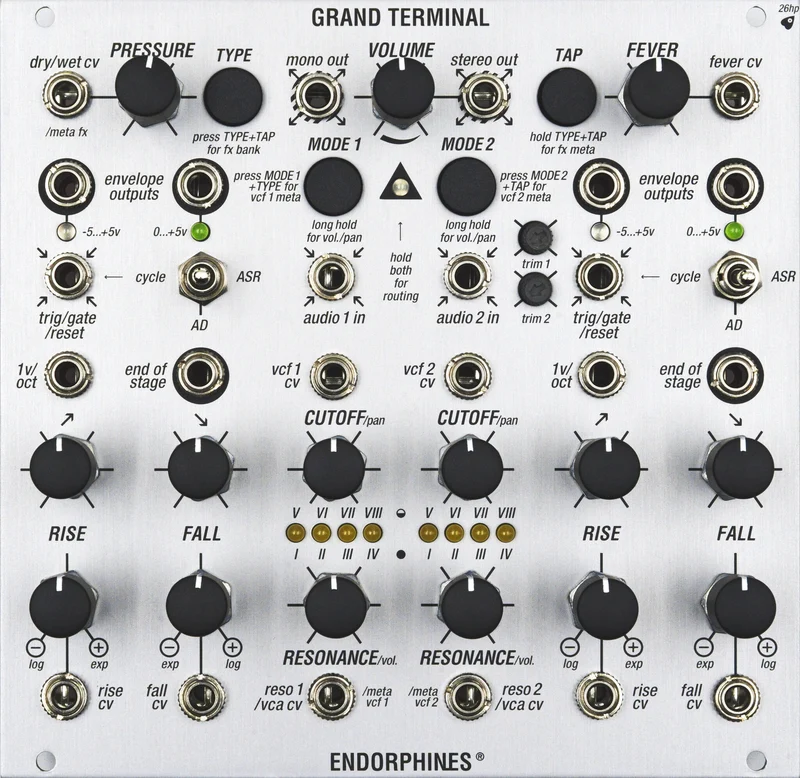

Endorphin.es Grand Terminal

• Dual multi-mode filter (ladder, diode, vactrol, state-variable lp/hp/bp and comb) in dual, stereo and serial modes

• Dual AD/ASR/looping envelope generator that acts as band-limited oscillator when cycling at linear slopes

• Stereo “Cabin Pressure” processor with different 16 effects: from shimmered halls and reverberations to a spring simulation over tape/ping-pong delays / chorus / distortion / compressor and others.

• Separate mono modular level output and stereo line level output for direct line recording or driving the headphones.

• Easy firmware update via Audio.

• Fully compatible with GatewayT_XP

• Audio I/O: 48 kHz 16 bit, 32 bits internal processing

Power consumption:

• 230 mA +12V

• 65 mA -12V

• 0 mA 5V



  Dimensions:

• 26 HP

• 26 mm deep



More information you can find here: Grand Terminal
