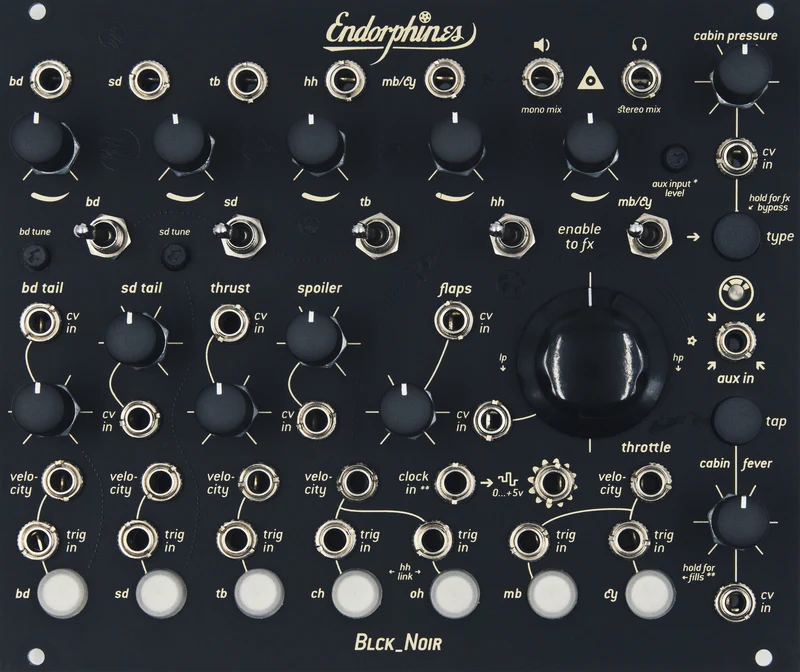

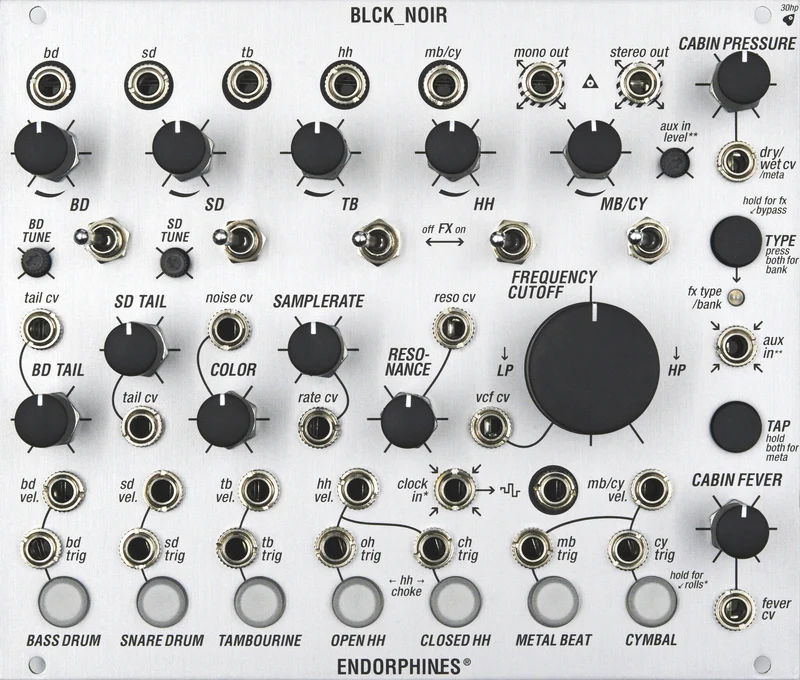

Endorphin.es NOIR Drum Module

• 7 drum voices in the analog kit: bass drum, snare, tambourine, closed and open hi-hats, metal beat and cymbal;

• hybrid sound generation: band-limited digital noise with spectrum animation, injected into analog circuits

• full discrete analog generation part, using inductor coils instead of op-amps

• on-board effect processor with drum-oriented 8 effects with additional auxiliary input and firmware update over audio same as in Queen of Pentacles / Milky Way / Grand Terminal

• drums that have character: fit all styles of music – specifically tuned for darkwave and techno

• separate analog outputs and isolator-style resonance filter for main mix outputs

Power consumption:

• 240 mA +12V

• 75 mA -12V

• 0 mA 5V

Dimensions:

• 30 HP

• 18 mm deep

More information you can find here: BLCK_NOIR
