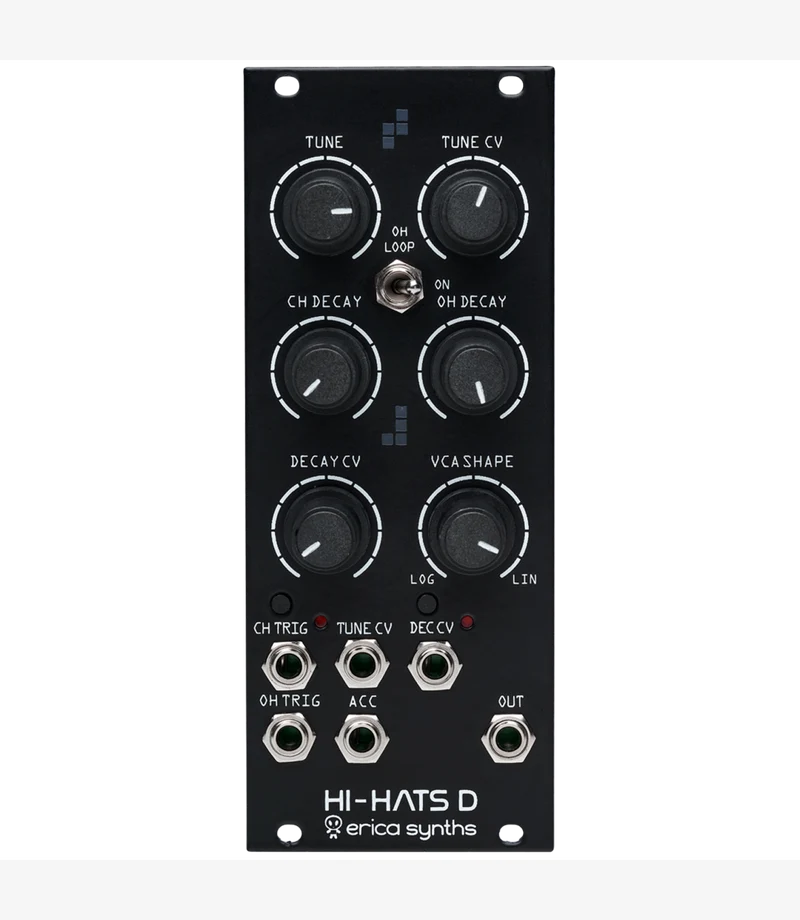

Erica Synths Erica Synths Hi-Hats D (pins)

Erica Synths Drum Sequencer has connectors for internal Trigger and Accent connections to Erica synths Drum modules. The connections are made via six wire ribbon cables with 2x3 connectors (similar to Eurorack PSU connectors), and you can save some patch cables if you have a lot of Erica Synths Drum modules. Internal connections will work only with Erica Synths modules and no other manufacturer module will support this functionality. If you have Erica Synths Drum Sequencer and other Erica Synths Drum modules and want to use internal connections, select “Hi-Hats D with internal connectors” option. If you do not want to use internal connections, select cheaper “Hi-Hats D without internal connectors” option.

• Audio output level -5...+5V

• CV level (full span) -5 - +5V

• Accent CV level 10V

• Tigger level 5V

• Tigger time 1ms

• Power consumption 56mA @ + 12V, 35mA @ -12V

• Module width 10HP

• Module depth 45mm

More info: Hi-Hats D
