M-Audio BX5D3 (Singles)

The M-Audio BX5 D3 is a compact yet powerful studio monitor designed for accurate sound reproduction in various studio environments. Featuring a 5" Kevlar low-frequency driver and a 1" natural silk dome tweeter, it delivers a wide frequency response of 52Hz–35kHz. The bi-amplified Class A/B design provides 100W total power (60W LF / 40W HF), ensuring clarity and precision across the audio spectrum.

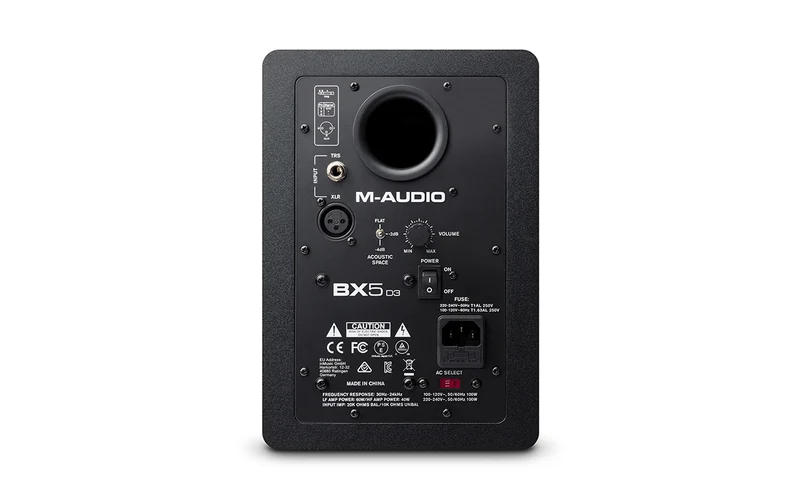

Equipped with Acoustic Space Control, the BX5 D3 allows you to tailor the low-end response to your room, minimizing problematic bass frequencies. The rear-mounted bass port is optimized for extended low-frequency response, and the front-panel LED indicates optimal speaker positioning. With XLR and 1/4" TRS inputs, it seamlessly integrates into any studio setup.

Key Specifications:

• Type: 2-way near-field studio reference monitor

• LF Driver: 5" Kevlar curved cone with high-temp voice coil and damped rubber surround

• HF Driver: 1" natural silk dome

• Frequency Response: 52Hz–35kHz

• Crossover Frequency: 2.5kHz

• Amplifier Power: 100W (60W LF / 40W HF)

• Max SPL: 110dB

• Inputs: 1 x XLR balanced, 1 x TRS balanced/unbalanced

• Input Impedance: 10kΩ balanced, 20kΩ unbalanced

• Enclosure: Vinyl-laminated high-acoustic-efficiency MDF

• Dimensions: 6.9" x 7.8" x 10" (176 x 197 x 254 mm)

• Weight: 12.3 lbs (5.6 kg)
