M-live GO.8

M-Live GO.8: Professional Automatic Redundancy Switcher

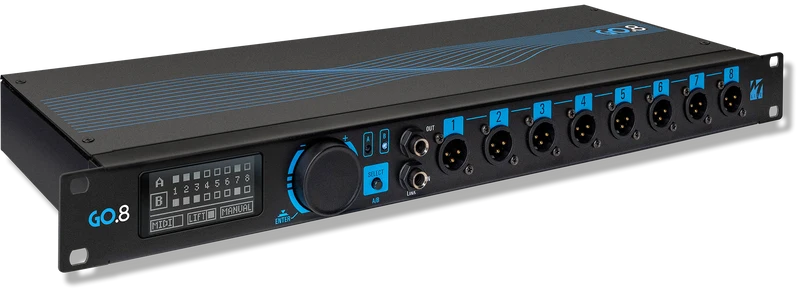

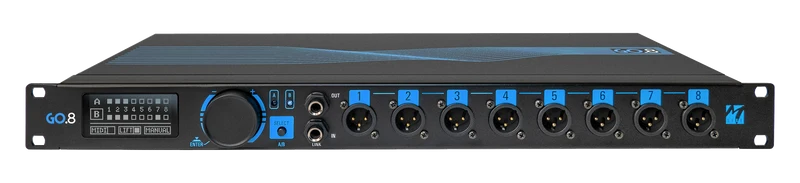

The M-Live GO.8 is a high-performance 19" rack-mount switcher engineered to provide fail-safe continuity for live audio, video, and MIDI playback. By monitoring a continuous 1kHz "SYNCH" signal on the 8th audio channel, the GO.8 can detect a crash of the primary machine and instantly toggle to a backup source. This is an essential tool for high-stakes concerts and theatrical performances where backing tracks, synchronized visuals, and MIDI automation cannot be interrupted. Whether you are using a pair of B.Beat units or dual DAW setups, the GO.8 offers professional-grade routing with transformer-isolated XLR outputs to ensure the cleanest possible signal to the front-of-house mixer.

Key Features:

• Instant Automatic Switching: Real-time transition to backup system upon loss of pilot signal.

• Comprehensive A/V/M Redundancy: Manages 8 balanced audio channels, 1 MIDI line, and 1 Video line (HDMI).

• Transformer-Isolated Outputs: Front-panel XLRs are isolated to eliminate ground loops and stage noise.

• Expandable Architecture: Daisy-chain multiple units to manage larger 16, 24, or 32-track configurations.

• Redundant Power Input: Dual DC inputs allow for two separate power supplies to prevent shutdowns.

Technical Specifications:

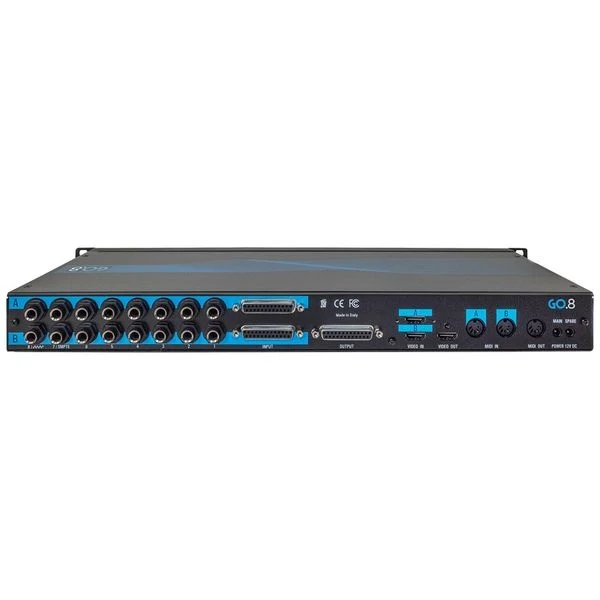

• Inputs: 2 groups of 8 (1/4" TRS and DB25).

• Outputs: 8x Front XLR (balanced DI), Rear DB25, HDMI, MIDI Out.

• Display: 2.4" OLED for status monitoring and SMPTE timecode reading.

• Format: 1U 19" Rack-mount, 2.5 kg.
