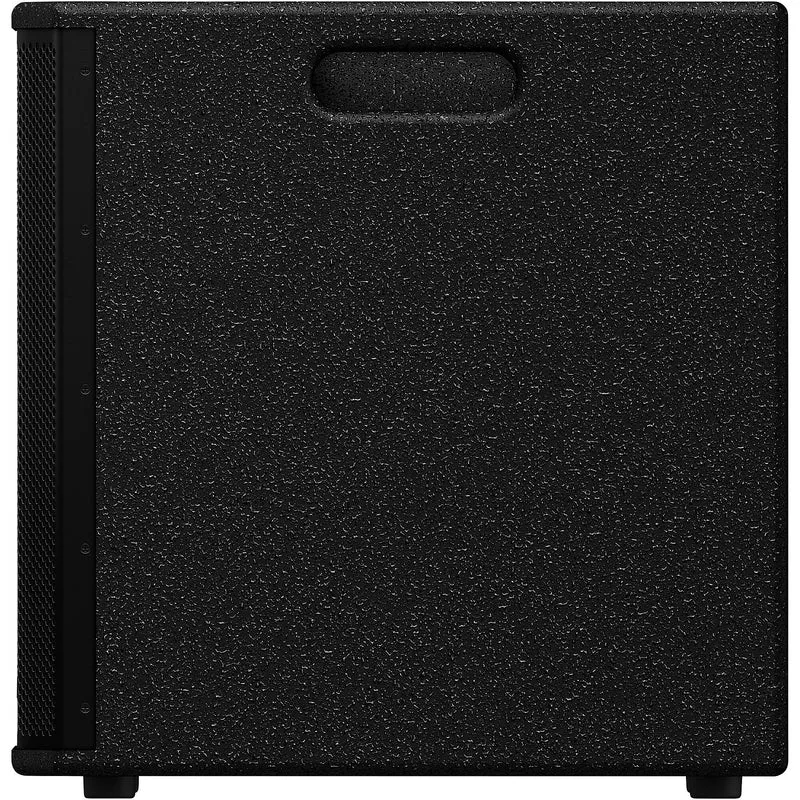

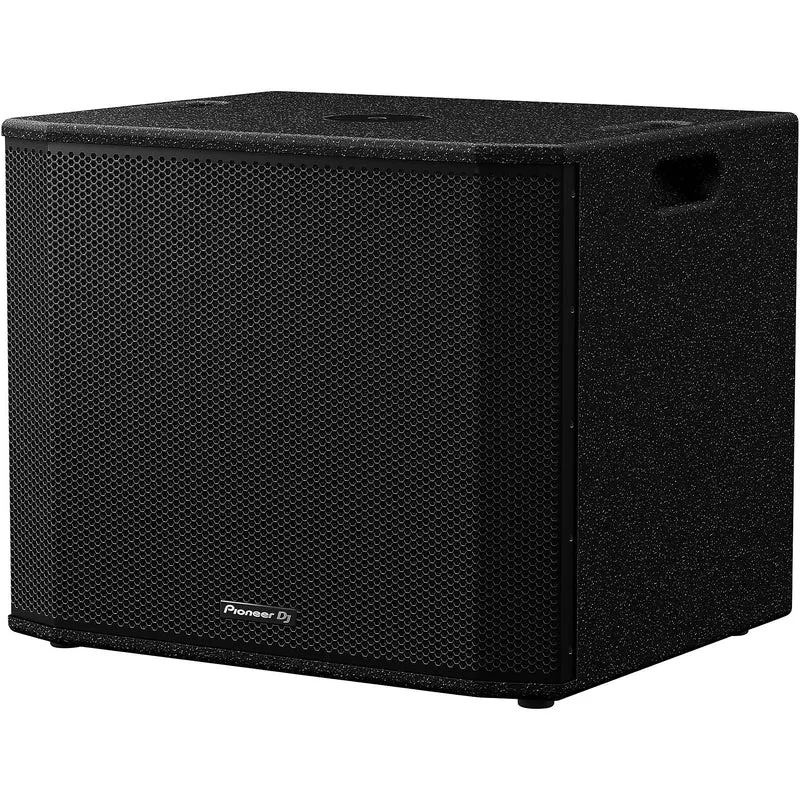

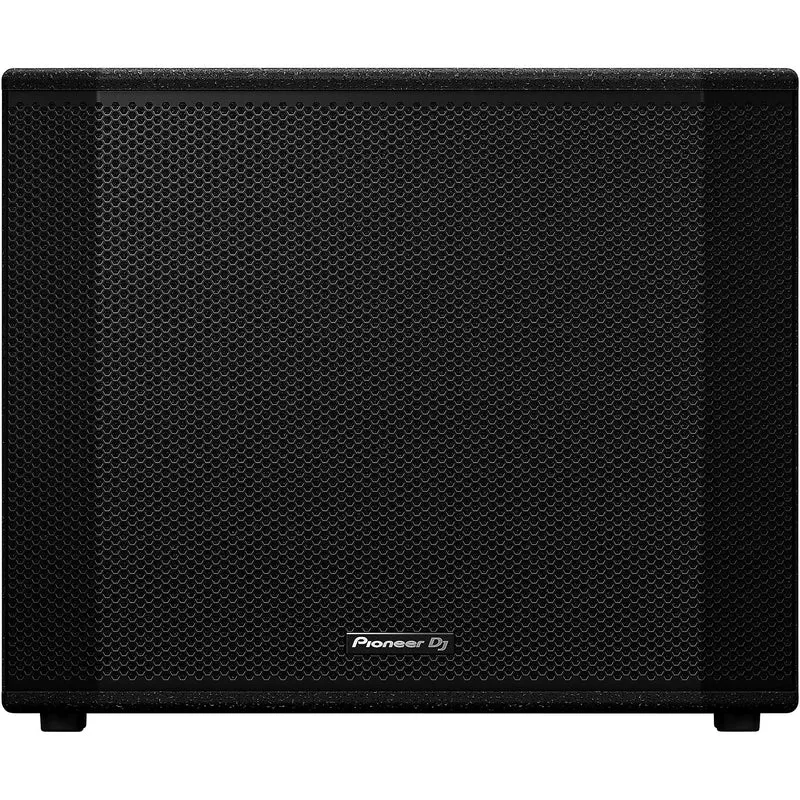

Pioneer DJ XPRS1182ST

Powerful, Deep Bass for Any Professional Setup
The Pioneer DJ XPRS1182ST is a professional 18” active subwoofer designed to deliver ultra-deep, accurate bass in live sound and DJ applications. With a powerful 4000W Class-D amplifier, a rugged ferrite woofer, and flexible DSP settings, this subwoofer ensures tight and punchy low-end response for any performance or installation.

Key Features

• 18” ferrite woofer with 3” voice coil for extended low-frequency output

• 4000W peak Class-D amplifier for powerful, efficient performance

• 3 DSP modes: Boost, Extended LF, and Normal

• Selectable crossover at 80Hz, 100Hz, or 120Hz for easy integration

• Max SPL: 130dB with frequency response down to 40Hz

• Durable plywood cabinet with metal grille and rubber feet

• Mountable via M20 screw socket, compatible with optional wheelboard

Technical Specifications

• System Type: 18” active vented subwoofer

• Power Output: 4000W peak, Class-D

• Transducer: 18” ferrite woofer, 3” (76mm) voice coil

• Frequency Response (-6dB): 40Hz – 120Hz

• Max SPL: 130dB

• DSP Modes: Boost, Extended LF, Normal

• Crossover Frequencies: 80Hz / 100Hz / 120Hz (low-pass filter)

• Protection: Overheat, short circuit, digital compressor

• Cooling: Temperature-controlled fan

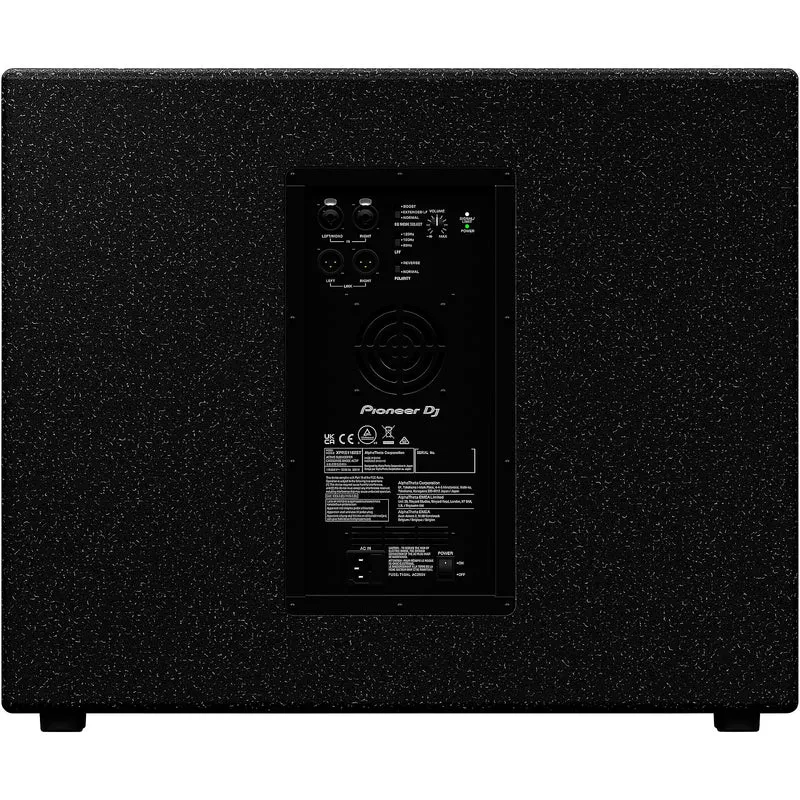

• Connectors: Combo input (Left Mono), XLR-F (Right), XLR-M outputs

• External Controls: Volume, Phase, EQ Mode, LPF selector, LED indicators

• Power Supply: AC 110–240V (50/60Hz), 800W consumption

• Mounting: Standard M20 pole mount

• Construction: Plywood cabinet, black paint, metal grille with foam

• Dimensions (WxDxH): 661 x 535 x 536.5 mm / 26.02” x 21.06” x 21.12”

• Weight: 32.6 kg / 71.9 lb

Applications

• Live sound reinforcement

• DJ setups and mobile rigs

• Clubs, bars, and lounges

• Houses of worship

• Event venues and rental applications
