Presonus NSB 16.8

FEATURES

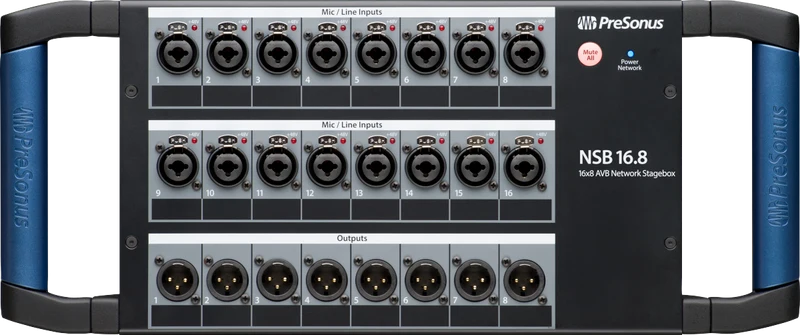

• Rugged stage box enclosure with handles

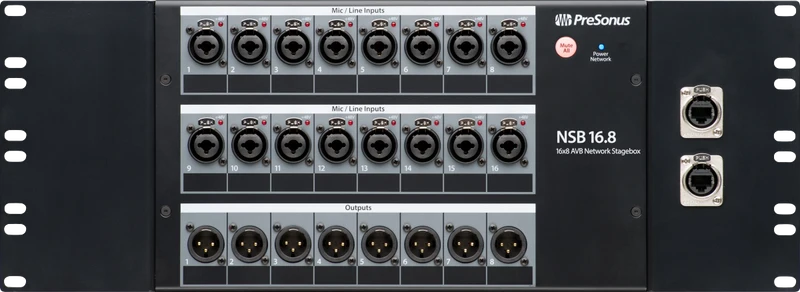

• 16 locking mic/line inputs and 8 locking XLR outputs
• 16 remote-controllable XMAX preamps
• Gain compensation for shared inputs

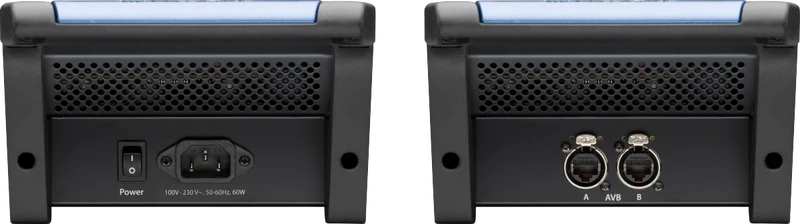

• 2 AVB ports with locking XLR Ethernet jacks
• 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
• Easy setup and control from StudioLive® Series III consoles and from free PreSonus® UC Surface software

Electronics

VOLTAGE 220-240V EU PHANTOM POWER 48 VDC, Switchable Per Channel (±2 VDC)

Performance

DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)

Inputs

LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) LINE INPUTS IMPEDANCE 10 kΩ LINE INPUTS MAXIMUM LEVEL +18 dBu LINE INPUTS SIGNAL TO NOISE RATIO 94 dB LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain) MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ MICROPHONE PREAMP MAXIMUM INPUT LEVEL +12 dBu (Unity Gain) MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Miscellaneous

COMMODITY CODE 8517620000 POWER CABLE Locking IEC SUPPORTED SAMPLE RATES 48 kHz, 44.1 kHz

Hardware

DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet
