Presonus NSB 8.8

DESCRIPTION

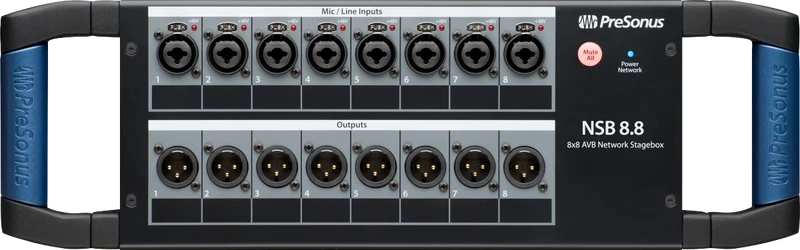

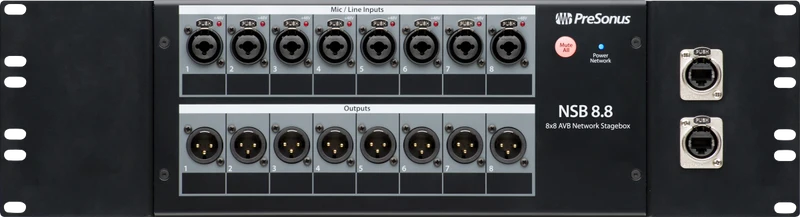

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

FEATURES

• Rugged stage box enclosure with handles
• 8 locking, mic/line inputs and 8 locking XLR outputs
• 8 remote-controllable XMAX preamps
• Gain compensation for shared inputs

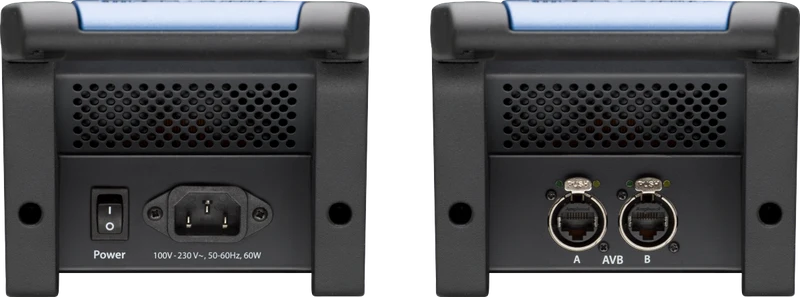

• 2 AVB ports with locking XLR Ethernet jacks
• 16x8 AVB (8 direct input channels + 8 gain compensated input channels)
• Easy setup and control from Series III mixers and free PreSonus UC Surface software

  Inputs

  LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) LINE INPUTS IMPEDANCE 10 kΩ LINE INPUTS MAXIMUM LEVEL +18 dBu LINE INPUTS SIGNAL TO NOISE RATIO 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted) LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain) MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB) MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ MICROPHONE PREAMP MAXIMUM INPUT LEVEL +12 dBu (Unity Gain) MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted


  Performance

  DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)
