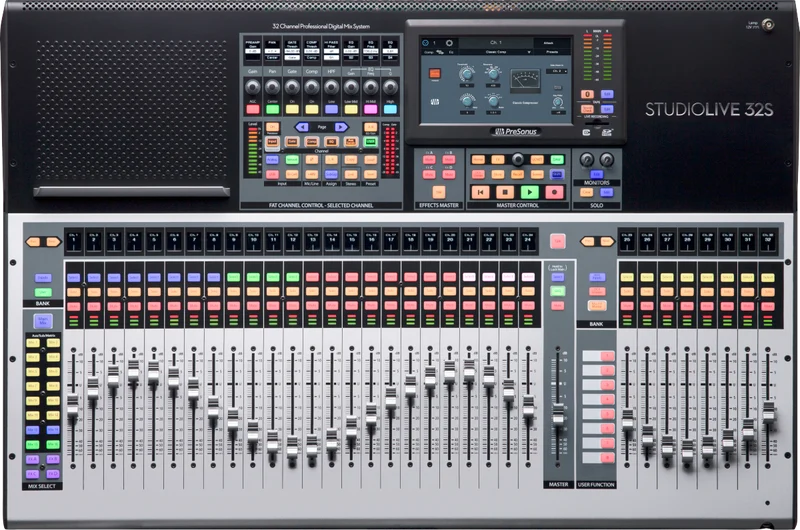

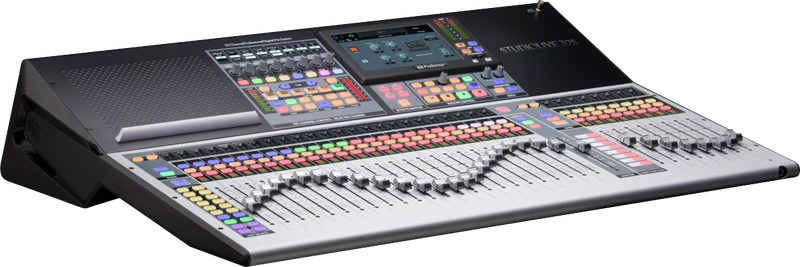

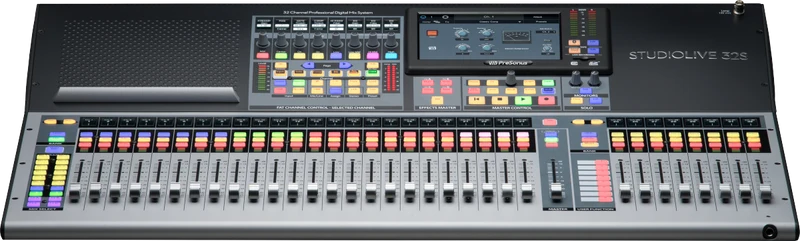

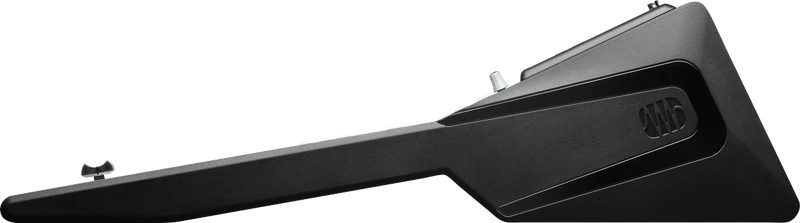

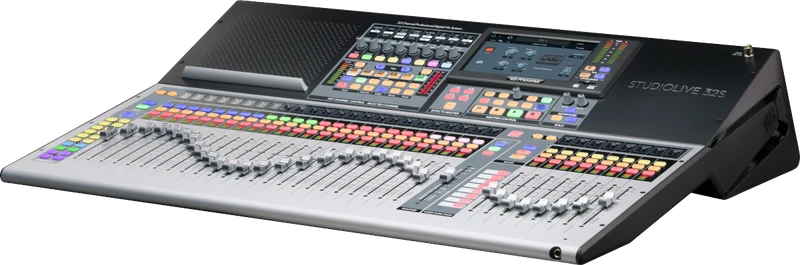

Presonus StudioLive 32S

FEATURES

• Portable, and flexible digital console for installed sound, mobile applications, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
• Fully recallable, 40-input, 32-channel digital mixing console
• Built-in AVB networking creates a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
• Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
• Onboard multitrack SD Card recorder with true Virtual Soundcheck
• 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture.

Performance

DIGITAL AUDIO BIT DEPTH 24 DIGITAL AUDIO DYNAMIC RANGE ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS +18 dBu DIGITAL AUDIO TOTAL SYSTEM LATENCY

Electronics

HEADPHONE JACK 1/4" TRS Active Stereo VOLTAGE 220-240V EU POWER REQUIREMENTS 85W (Continuous) PHANTOM POWER 48 VDC, Switchable Per Channel (±2 VDC)

Inputs

- LINE INPUT CONNECTION TYPE 1/4" TRS Female, Balanced - LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) - LINE INPUTS IMPEDANCE 10 kΩ - LINE INPUTS MAXIMUM LEVEL =+18 dBu - LINE INPUTS SIGNAL TO NOISE RATIO 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted) - LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted - MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced - MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain) - MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) - MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB) - MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ - MICROPHONE PREAMP MAXIMUM INPUT LEVEL =+12 dBu (Unity Gain) - MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) - MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted - TAPE MAXIMUM INPUT LEVEL =+12 dBu, ±0.5 dBu

Outputs

- HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/-0.5 dB - HEADPHONE OUTPUTS MAXIMUM OUTPUT 100 mW/ch. @ 60Ω load - HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted - HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted - LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female, Balanced - LINE OUTPUTS MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu - LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms - TAPE MAXIMUM OUTPUT LEVEL =+18 dBu, ±0.5 dBu - TAPE OUTPUT IMPEDANCE 100 Ohms

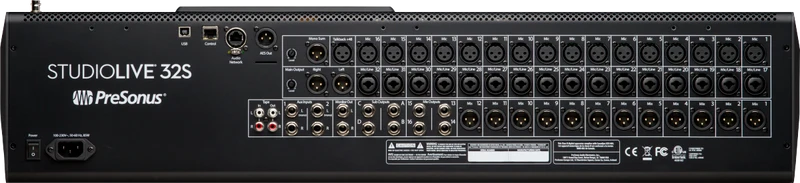

Hardware

 DIGITAL AUDIO AES EBU OUTPUT XLR Male  DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet  DIGITAL AUDIO BLUETOOTH INPUT 4.1, Stereo  DIGITAL AUDIO NETWORK CONTROL PORT RJ-45  DIGITAL AUDIO USB RECORDING PORT USB 2.0, Type-B  TAPE CONNECTION TYPE RCA Female, Unbalanced (Stereo Pair)
