Beschreibung

DESCRIPTION

A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for additional inputs. The 32SC’s 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on every input channel and output bus.

The 32SC also ships with PreSonus Capture recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

FEATURES

    • Portable, rack-mountable, and flexible digital console for installed sound, mobile, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
    • Fully recallable 32-channel digital mixing console
    • Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
    • Built-in 128-channel (64x64) USB interface—the most of any mixer
    • Onboard multitrack SD Card recorder with true Virtual Soundcheck
    • 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
    • FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
    • Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture

Electronics

  • HEADPHONE JACK
  • 1/4" TRS Active Stereo
  • VOLTAGE
  • 220-240V EU
  • POWER REQUIREMENTS
  • 85W (Continuous)
  • PHANTOM POWER
  • 48 VDC, Switchable Per Channel (±2 VDC)

Performance

  • DIGITAL AUDIO BIT DEPTH
  • 24
  • DIGITAL AUDIO DYNAMIC RANGE
  • ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
  • DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS=+18 dBu
  • DIGITAL AUDIO TOTAL SYSTEM LATENCY 1.9 ms (local routing, analog in-analog out, all processing active)

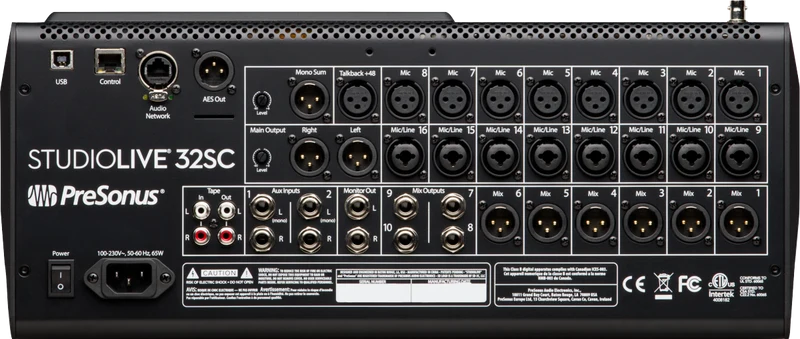

Hardware

  • DIGITAL AUDIO AES EBU OUTPUT
  • XLR Male
  • DIGITAL AUDIO AVB AUDIO NETWORK PORTS
  • Locking XLR Ethernet
  • DIGITAL AUDIO NETWORK CONTROL PORT
  • RJ-45
  • DIGITAL AUDIO USB RECORDING PORT
  • USB 2.0, Type-B
  • TAPE CONNECTION TYPE
  • RCA Female, Unbalanced (Stereo Pair)

Inputs

  • LINE INPUT CONNECTION TYPE
  • 1/4" TRS Female, Balanced
  • LINE INPUTS FREQUENCY RESPONSE20-20 kHz (±0.5 dBu at Unity Gain)
  • LINE INPUTS IMPEDANCE 10 kΩ
  • LINE INPUTS MAXIMUM LEVEL=+18 dBu
  • LINE INPUTS SIGNAL TO NOISE RATIO94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • LINE INPUTS TOTAL HARMONIC DISTORTION<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
  • MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
  • MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
  • MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB)
  • MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ
  • MICROPHONE PREAMP MAXIMUM INPUT LEVEL =+12 dBu (Unity Gain)
  • MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • TAPE MAXIMUM INPUT LEVEL +12 dBu, ±0.5 dBu

Outputs

- HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/-0.5 dB - HEADPHONE OUTPUTS MAXIMUM OUTPUT 100 mW/ch. @ 60Ω load - HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted - HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted - LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female, Balanced - LINE OUTPUTS MAXIMUM OUTPUT LEVEL =+18 dBu, ±0.5 dBu - LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms - TAPE MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu - TAPE OUTPUT IMPEDANCE 100 Ohms

Hardware

DIGITAL AUDIO AES EBU OUTPUT XLR Male DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet DIGITAL AUDIO NETWORK CONTROL PORT RJ-45 DIGITAL AUDIO USB RECORDING PORT USB 2.0, Type-B TAPE CONNECTION TYPE RCA Female, Unbalanced (Stereo Pair)
