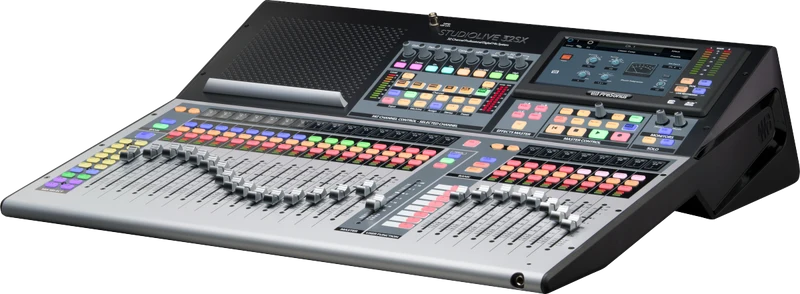

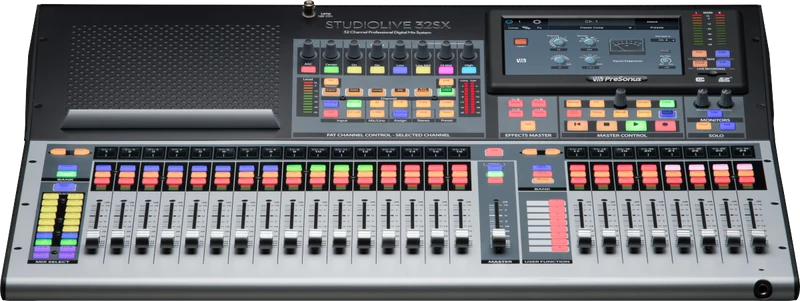

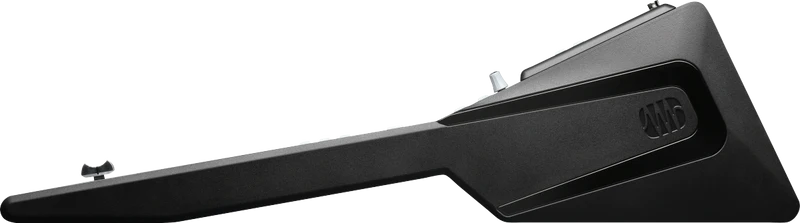

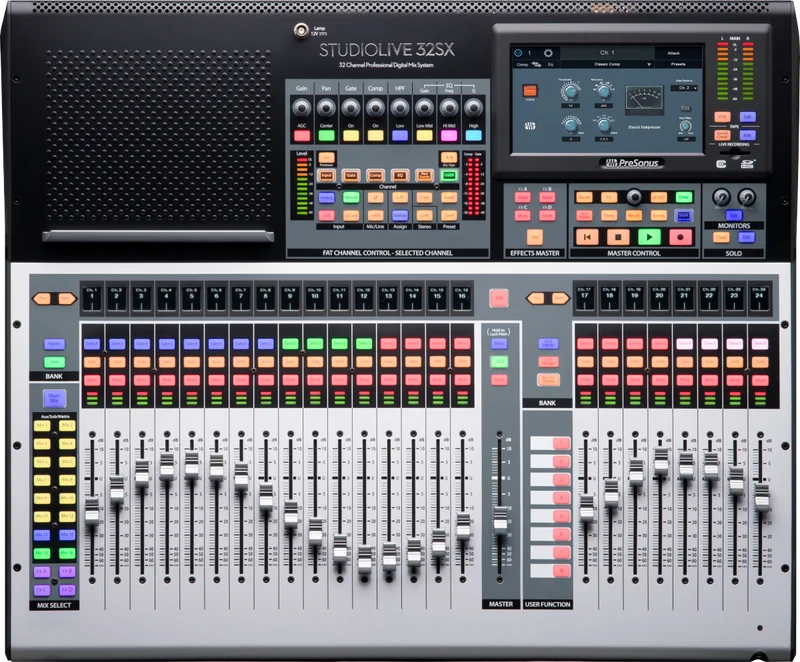

Presonus StudioLive 32SX

FEATURES

• Portable, and flexible digital console for installed sound, mobile application, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
• Fully recallable, 40-input, 32-channel digital mixing console
• Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
• Built-in 128-channel (64x64) USB interface—the most of any mixer
• Onboard multitrack SD Card recorder with true Virtual Soundcheck
• 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
• FLEX FX multieffects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture.

Electronics HEADPHONE JACK 1/4" TRS Active Stereo VOLTAGE 220-240V EU POWER REQUIREMENTS 85W (Continuous) PHANTOM POWER 48 VDC, Switchable Per Channel (±2 VDC)

Performance DIGITAL AUDIO BIT DEPTH 24 DIGITAL AUDIO DYNAMIC RANGE ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS =+18 dBu DIGITAL AUDIO TOTAL SYSTEM LATENCY 1.9 ms (local routing, analog in-analog out, all processing active)

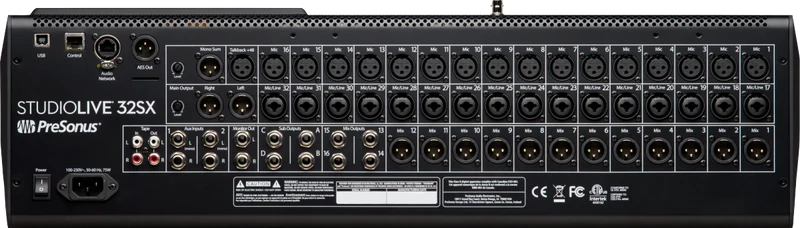

Inputs LINE INPUT CONNECTION TYPE 1/4" TRS Female, Balanced LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) LINE INPUTS IMPEDANCE 10 kΩ LINE INPUTS MAXIMUM LEVEL =+18 dBu LINE INPUTS SIGNAL TO NOISE RATIO 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted) LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain) MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain) MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB) MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ MICROPHONE PREAMP MAXIMUM INPUT LEVEL =+12 dBu (Unity Gain) MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted TAPE MAXIMUM INPUT LEVEL +12 dBu, ±0.5 dBu

Outputs HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/-0.5 dB HEADPHONE OUTPUTS MAXIMUM OUTPUT 100 mW/ch. @ 60Ω load HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female, Balanced LINE OUTPUTS MAXIMUM OUTPUT LEVEL =+18 dBu, ±0.5 dBu LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms TAPE MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu TAPE OUTPUT IMPEDANCE 100 Ohms

Hardware

DIGITAL AUDIO AES EBU OUTPUT XLR Male DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet DIGITAL AUDIO NETWORK CONTROL PORT RJ-45 DIGITAL AUDIO USB RECORDING PORT USB 2.0, Type-B TAPE CONNECTION TYPE RCA Female, Unbalanced (Stereo Pair)
