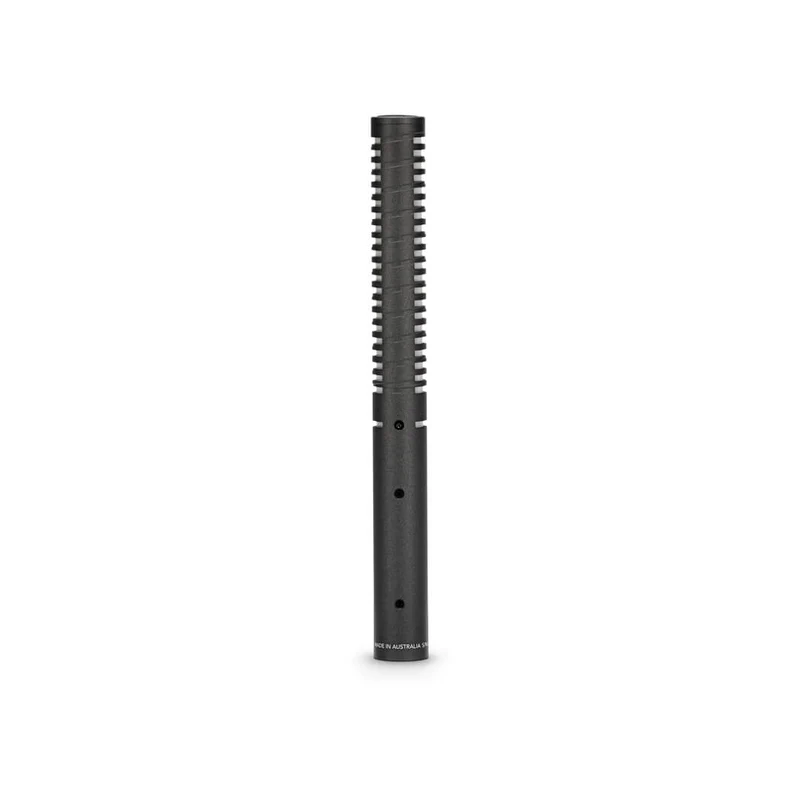

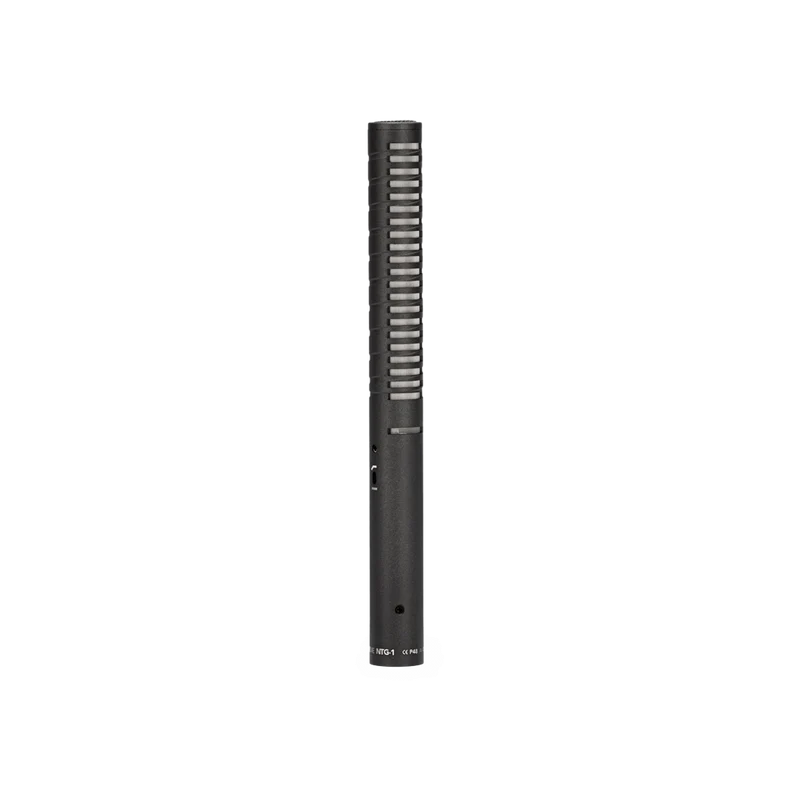

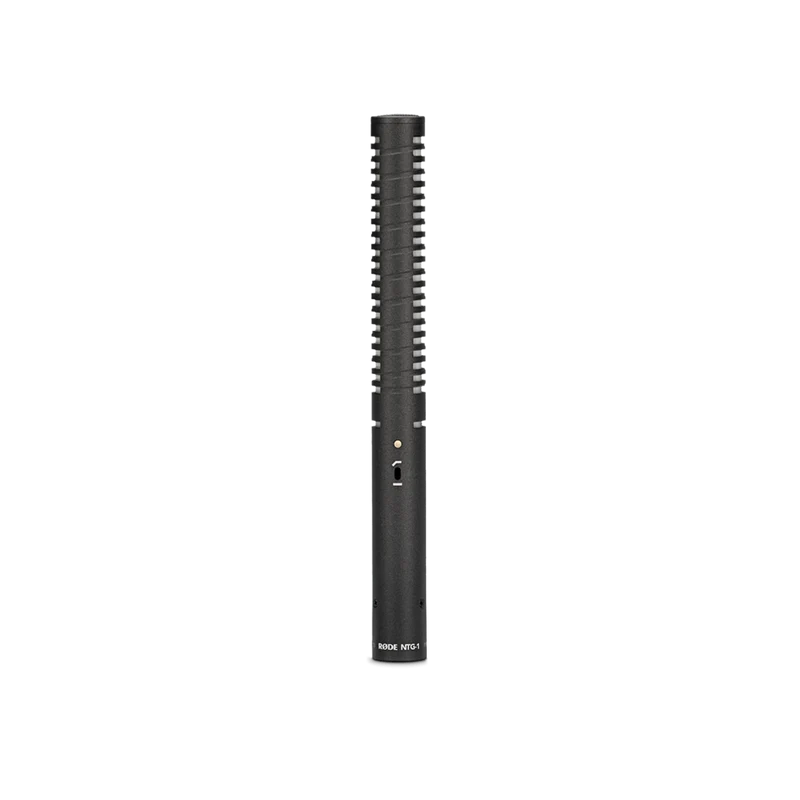

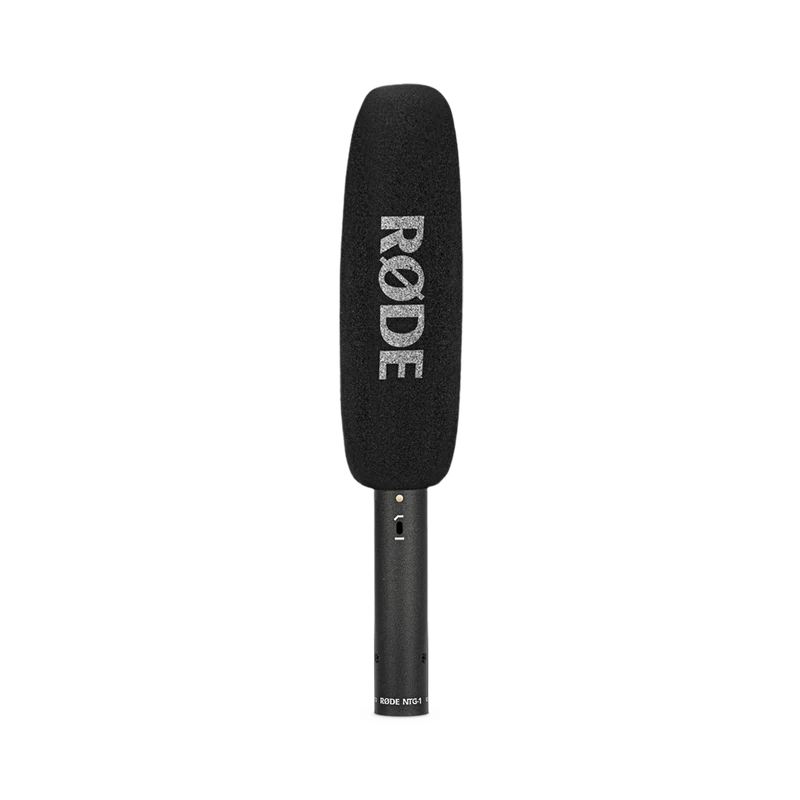

Rode NTG1

The NTG1 is a lightweight condenser shotgun microphone, designed for professional use in film, video, television, and broadcast applications. Its wide frequency response, low noise, and high transparency make it ideal for a range of uses, from filmmaking and voice-over work to streaming. Weighing just 105 grams, it is perfect for boom operation. Additionally, it includes a switchable high-pass filter for greater recording flexibility.

Key Features:

• Premium shotgun microphone
• Low noise and full frequency response
• Highly directional supercardioid polar pattern
• High-pass filter (80Hz) for added flexibility
• Lightweight (105 grams) and easy to use

Specifications:

• Acoustic & Electrical:

  • Acoustic Principle: Line Gradient
  • Active Electronics: JFET impedance converter with bipolar output buffer
  • Capsule: 0.50"
  • Polar Pattern: Supercardioid
  • Address Type: End
  • Frequency Range: 20Hz - 20kHz
  • Output Impedance: 50Ω
  • Maximum SPL: 139dB SPL
  • Maximum Output Level: 6.9mV (@ 1kHz, 1% THD into 1KΩ load)
  • Sensitivity: -36.0dB re 1 Volt/Pascal (15.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
  • Equivalent Noise Level (A-Weighted): 18dBA
  • Power Requirements: P24 and P48
  • Output Connection: XLR

• Mechanical:

  • Weight: 105g
  • Dimensions (mm): 219 (H) x 22 (W) x 22 (D)
