Rupert Neve Designs R6

A 500 Series Rack by Rupert Neve

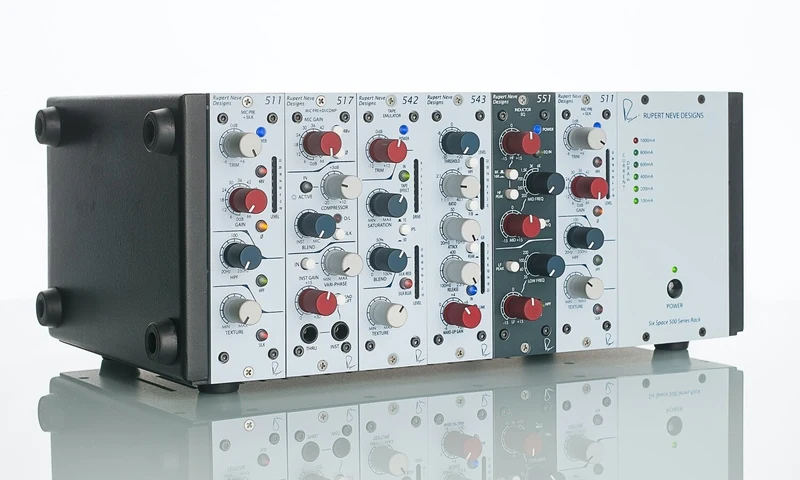

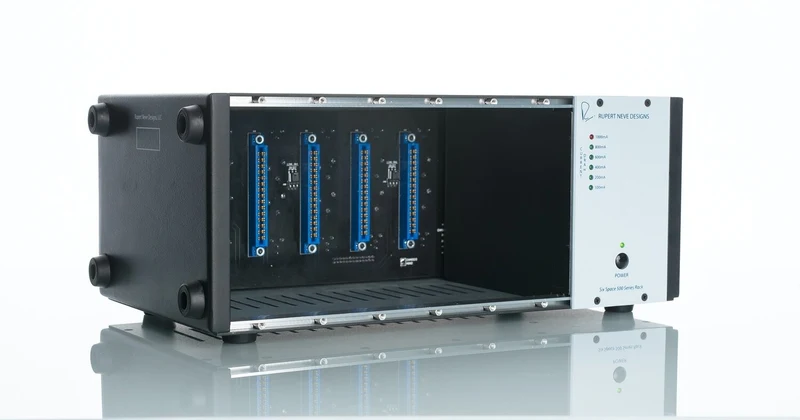

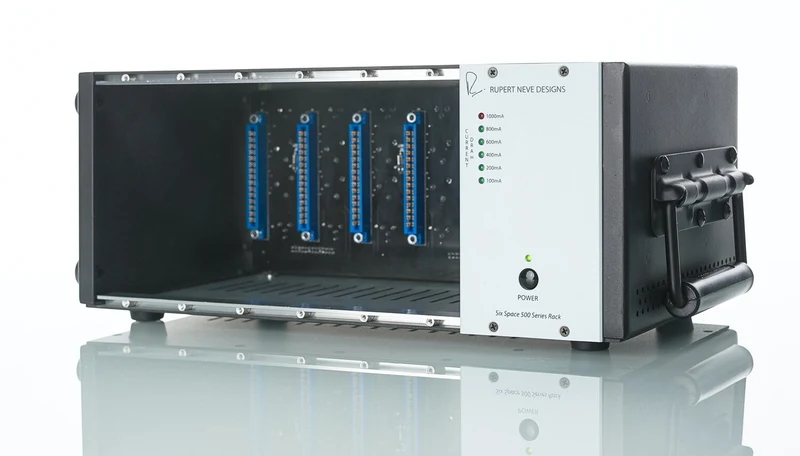

The Rupert Neve Designs R6 500 Series chassis is a 6-space, steel rack enclosure designed to integrate seamlessly with any studio setup. It features XLR, TRS, and DB-25 I/O, ensuring compatibility with a wide range of equipment. The R6 is engineered to provide 150% of the required current, ensuring that your modules are always adequately powered. It includes a built-in LED display for monitoring current consumption and a double-shielded internal power supply to prevent interference or unwanted noise. Designed by the legendary Rupert Neve, this 500 Series chassis offers top-tier quality and reliability. Pamper your 500 Series modules with the Rupert Neve Designs R6.

Rupert Neve Designs RND R6 500 Series Rack Features:

• Supplies 150% of the required current
• LED current consumption meter displays available current

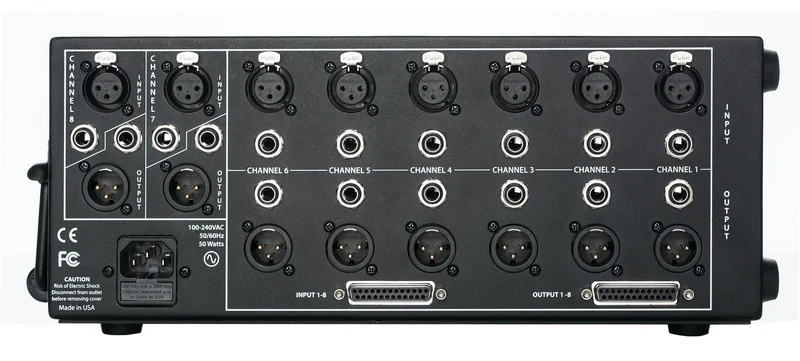

• XLR, TRS, and DB-25 I/O
• Variable-position screw holes for quick and easy module insertion
• Double-shielded internal power supply designed to avoid magnetic induction in module slots
• Switch-mode PSU with frequencies well outside the audible range
• Internal jumper configuration allows linking of slots in pairs
• Equip your studio with the Rupert Neve Designs RND R6!

Tech Specs:

• Number of Slots: 6
• Inputs: 8 x XLR, 8 x 6.35mm TRS, 1 x DB-25
• Outputs: 8 x XLR, 8 x 6.35mm TRS, 1 x DB-25
• Power Supply: Standard IEC AC cable, Internal switch-mode power supply
• Manufacturer Part Number: R6
