SmallRig Heavy-Duty Video Head 6553

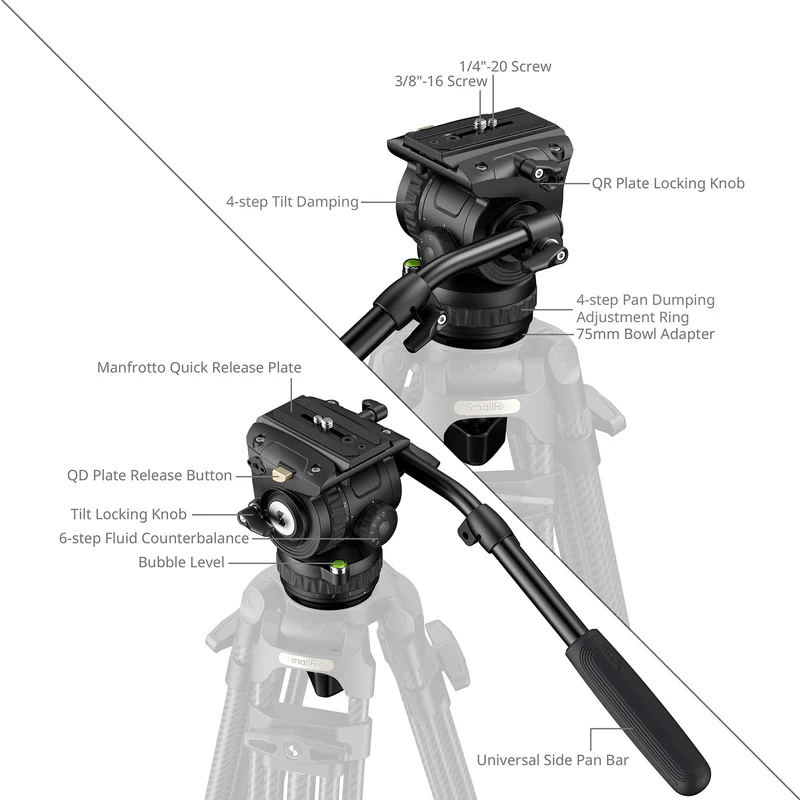

- Provides 6-step counterbalance adjustment and 4-step pan and 4-step tilt damping adjustment for better control.

- Supports fast switching between Manfrotto and DJI RS quick release plate systems.

- Features an extendable handle for more convenient storage.

- Includes a built-in 1/4"-20 threaded hole for attaching accessories such as a magic arm.

SmallRig Heavy-Duty Video Head 6553 is a professional video head designed for video production. It features a standard 75mm bowl base, 6-step counterbalance adjustment, and 4-step pan and 4-step tilt damping adjustment for smooth, controlled camera movement. The counterbalance system supports a payload range of 0.0-6.0kg (0.0-13.2lb), while the head offers a safe payload capacity of 10.0kg (22.0lb) and a maximum load capacity of 15.0kg (33.1lb).

It also provides fast switching between Manfrotto and DJI RS quick release plate systems. In addition, the head supports handle mounting on either the left or right side for both left- and right-hand operation. A built-in 1/4"-20 threaded hole allows attachment of accessories such as a magic arm.

Key Features

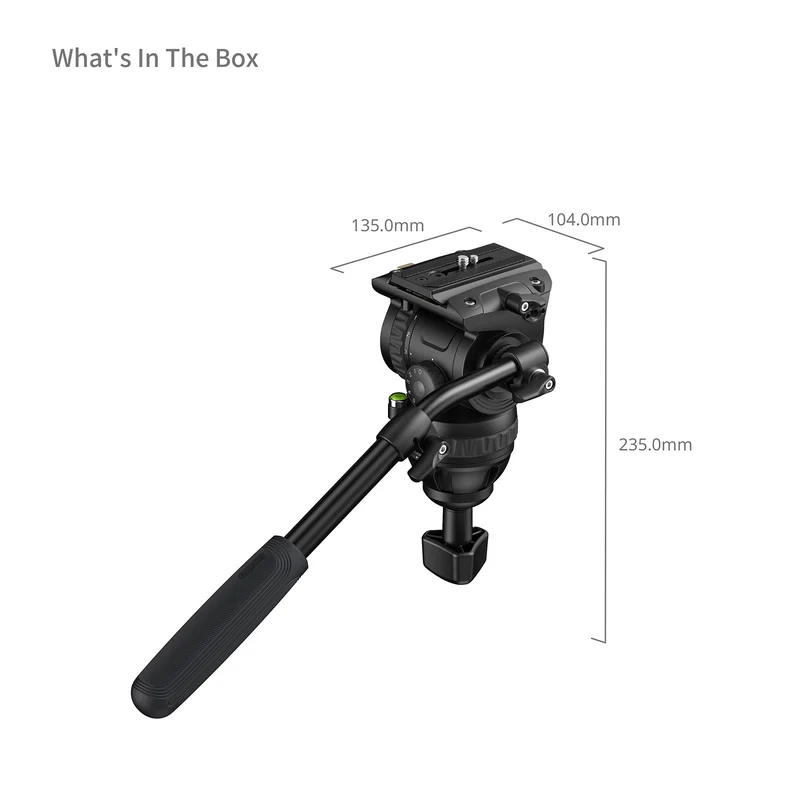

Product Dimensions: 10.4 × 13.5 × 23.5cm / 4.1 × 5.3 × 9.3in
Package Dimensions: 19.0 × 15.0 × 40.2cm / 7.5 × 5.9 × 15.8in
Product Weight: 2.1 ± 0.05kg / 4.6 ± 1.8oz
Package Weight: 2.64 ± 0.05kg / 5.8 ± 1.8oz
Bowl Diameter: 75.0mm / 3.0in

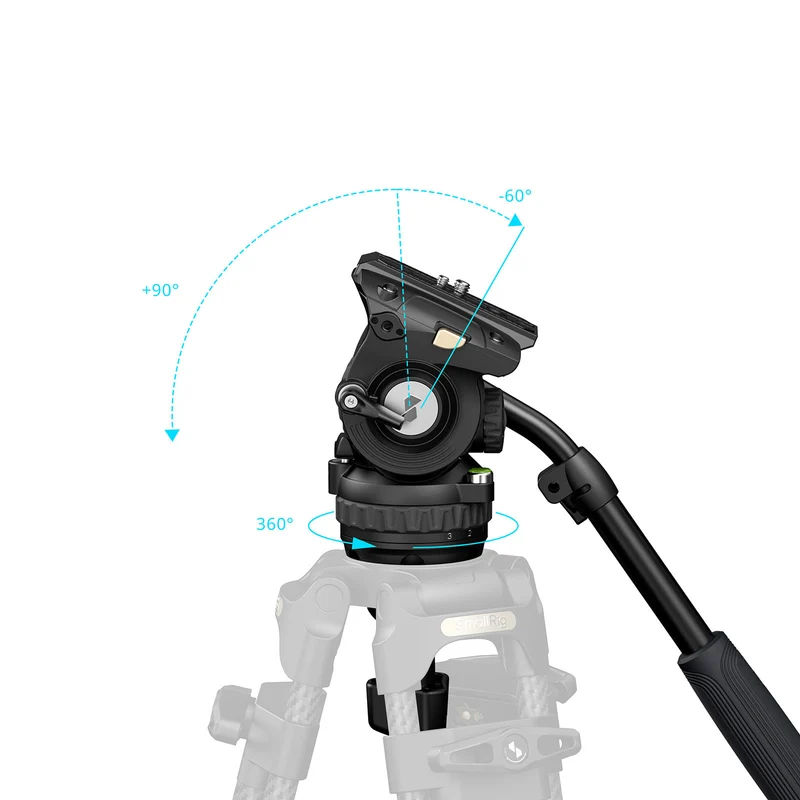

Tilt Range: 90° / -60°
Tilt Damping Levels: 4
Pan Damping Levels: 4
Counterbalance Steps: 6
Counterbalance Payload: 0.0-6.0kg / 0.0-13.2lb
Maximum Load: 15.0kg / 33.1lb
Safe Load: 10.0kg / 22.0lb
Handle Length: 38.5-55.0cm / 15.2-21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy
Sensitive Attribute: Contains 0.06ml liquid

Compatibility
1. Standard Manfrotto quick release plate (501PL).
2. 75mm bowl base.

WHAT IS INCLUDED
1x Video Head
1x Wrench
1x Guarantee Card
