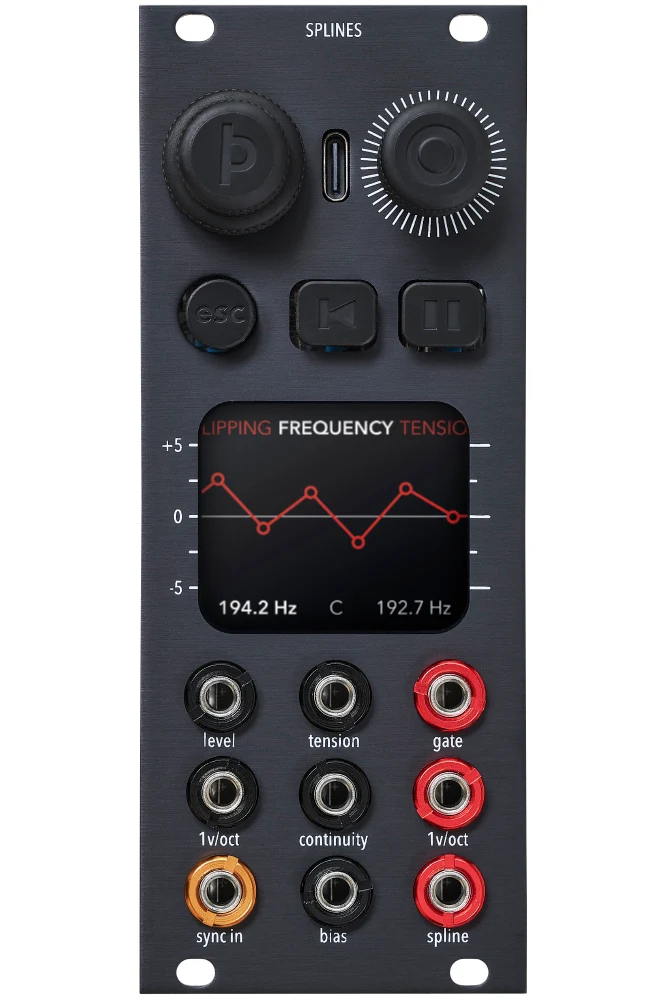

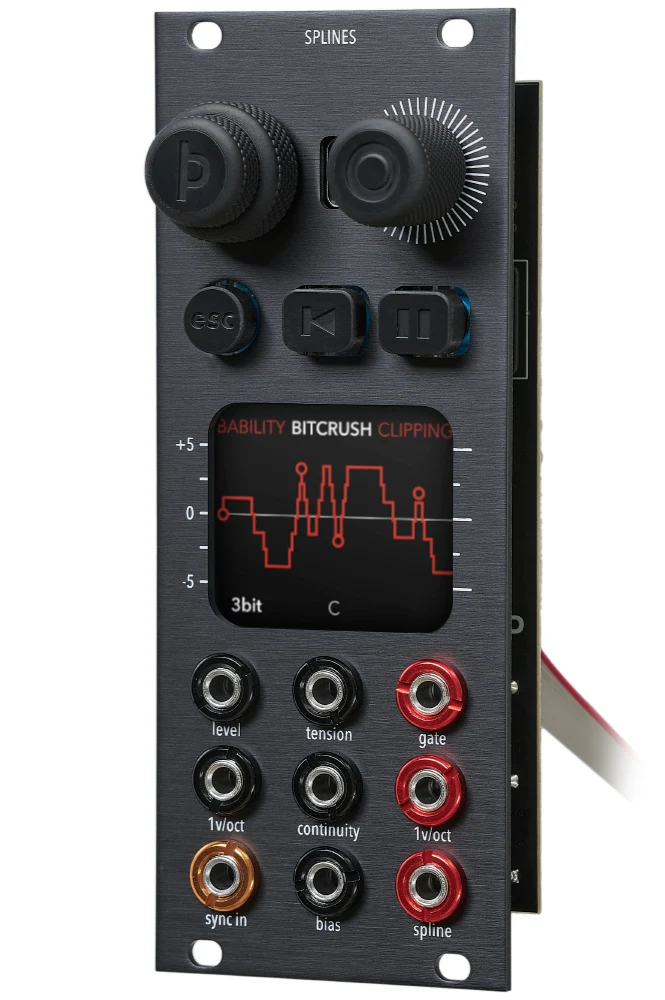

thorn.audio Splines Black

Overview:

• 16-point spline sequencer (X = time, Y = voltage)
• Optional gate trigger per point
• Curve shape controlled via Tension, Continuity, and Bias
• 1V/oct output, synced to phase position
• Frequency phase speed: 16-minute LFO up to 20kHz
• Zoom & Scroll select the output portion of the spline
• Level control replaces dedicated VCA
• Clipping options above ±5V: wavefolding, hard and soft clipping,
recify and comparator
• Built-in rolling oscilloscope for all 6 CV inputs
• Scaling and offset controls
• Sync input: tap tempo, envelope, or sequencer timing
• Firmware & scales updated via drag-and-drop over USB-C
• Developer resources for ESP-32 DSP projects included

Connections:

• Output resolution: 1-16 bits, Sample rate: 192kHz. Output voltage: +-5v
• CV voltage range: +-5v. Trigger duration: 15ms. Input trigger: 5v

Specifications:

• Width: 10 hp
• Depth: 31 mm
• Power consumption:
+12v: 50mA/170mA, -12v: 50mA.
5v: 170mA/0mA (5v source switchable)
