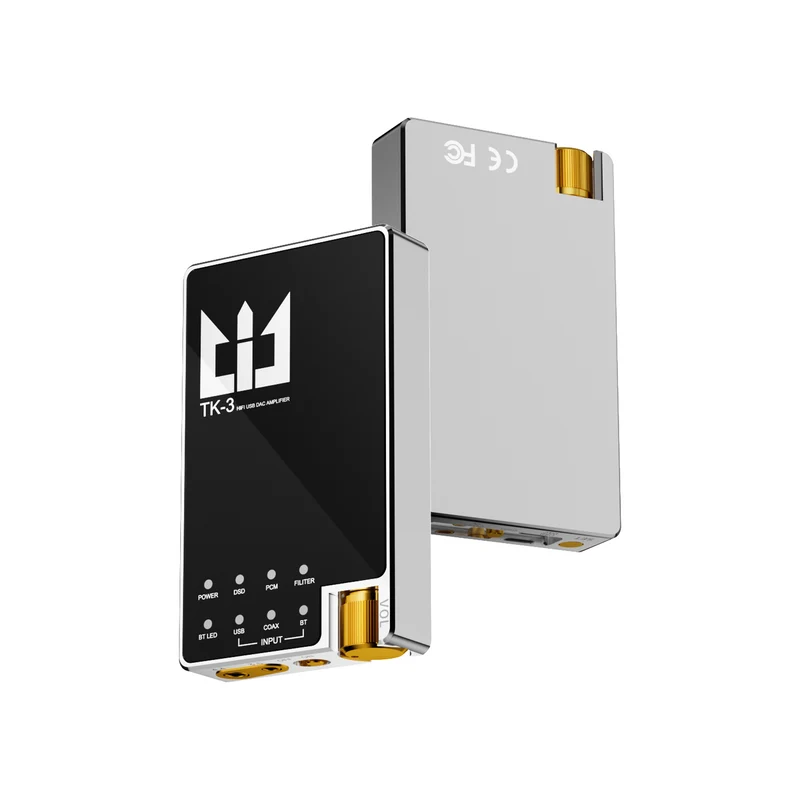

【TRI TK3】DAC/AMP Multi-functional Portable Audio DAC & Headphone Amplifier with USB/Bluetooth/Coaxial SPDIF Inputs

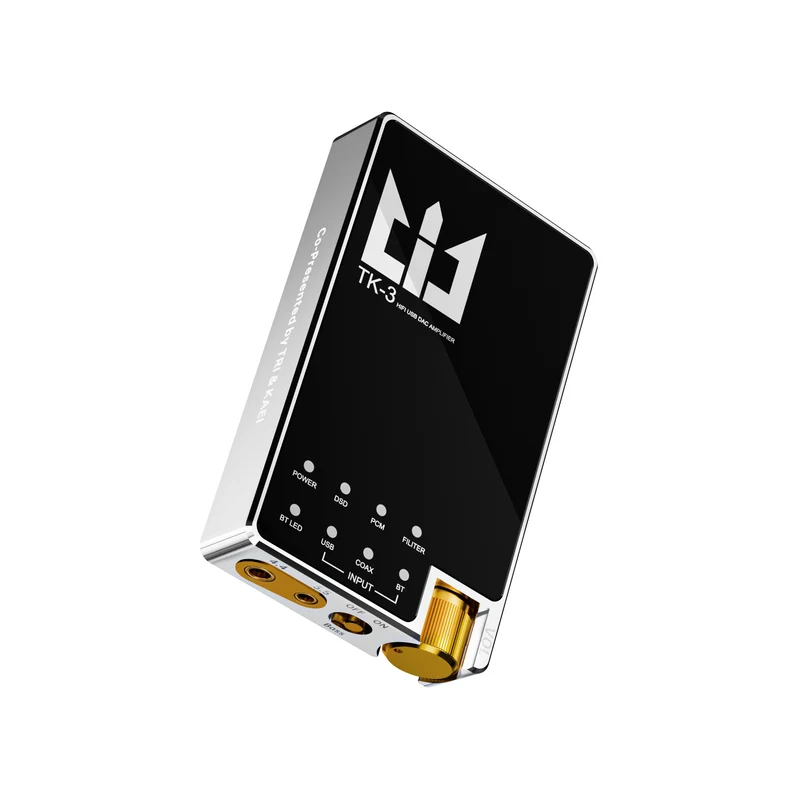

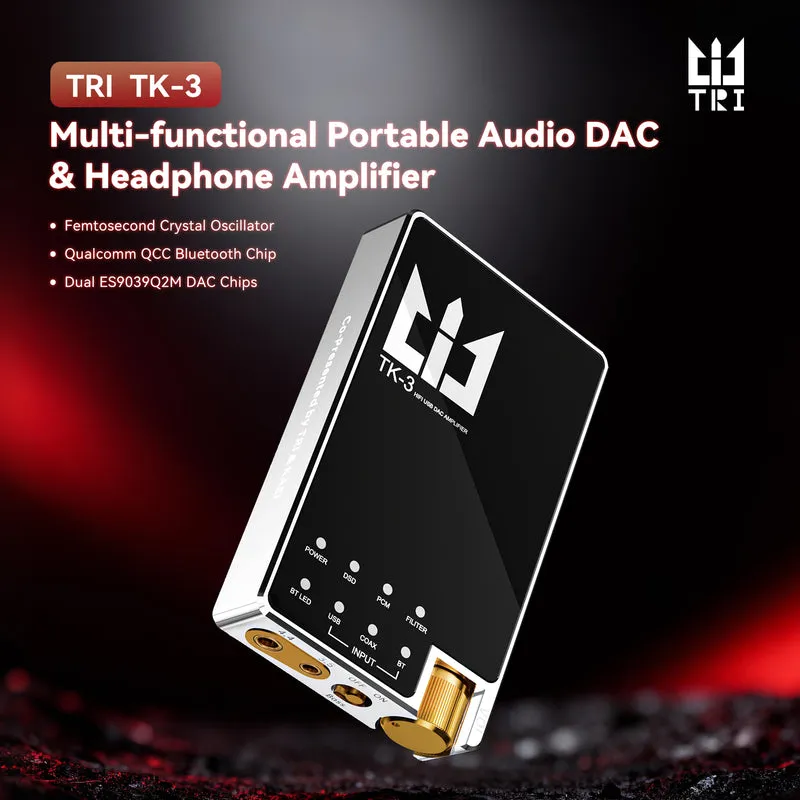

TRI TK3 Multi-functional Portable Audio DAC & Headphone Amplifier

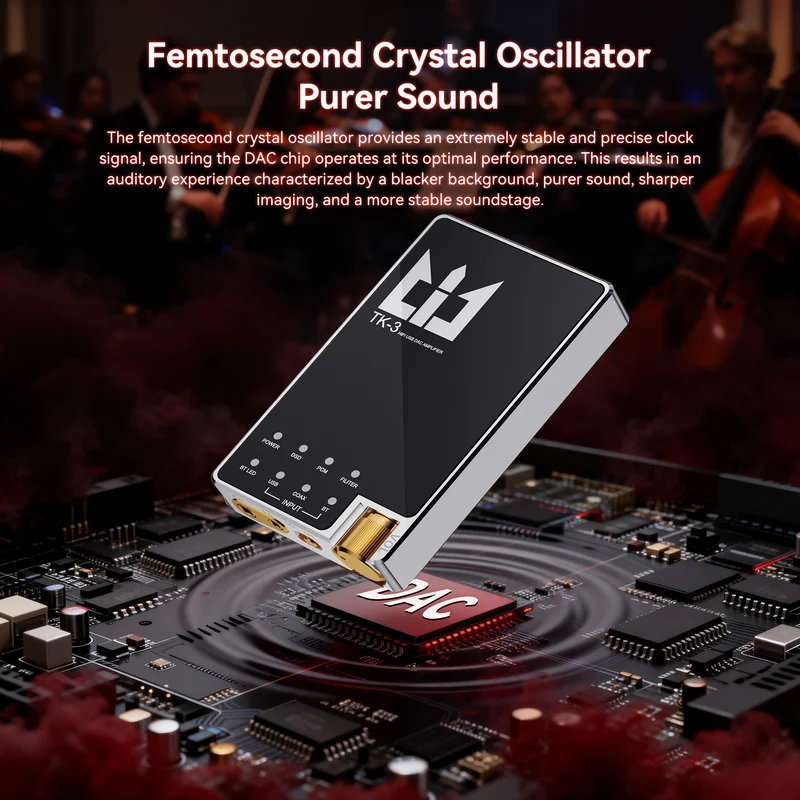

Femtosecond Crystal Oscillator | Qualcomm QCC Bluetooth Chip | Dual ES9039Q2M DAC Chips

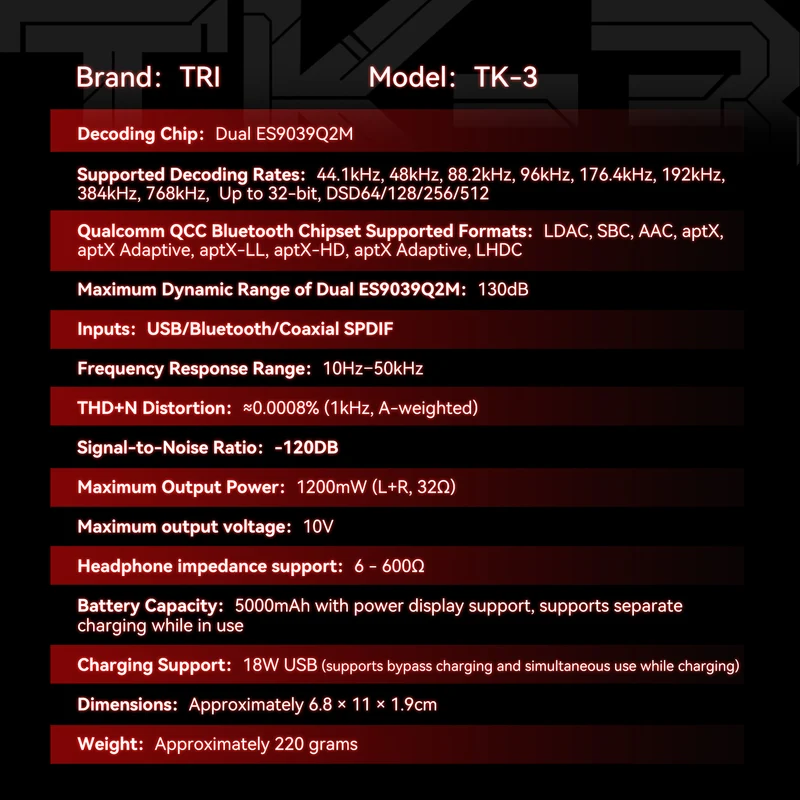

Specifications:

Brand：TRI
Model：TK3
Decoding Chip: Dual ES9039Q2M
Supported Decoding Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz, 768kHz, up to 32-bit, DSD64/128/256/512
Qualcomm QCC Bluetooth Chipset Supported Formats: LDAC, SBC, AAC, aptX, aptX Adaptive, aptX-LL, aptX-HD, aptX Adaptive, LHDC
Maximum Dynamic Range of Dual ES9039Q2M: 130dB

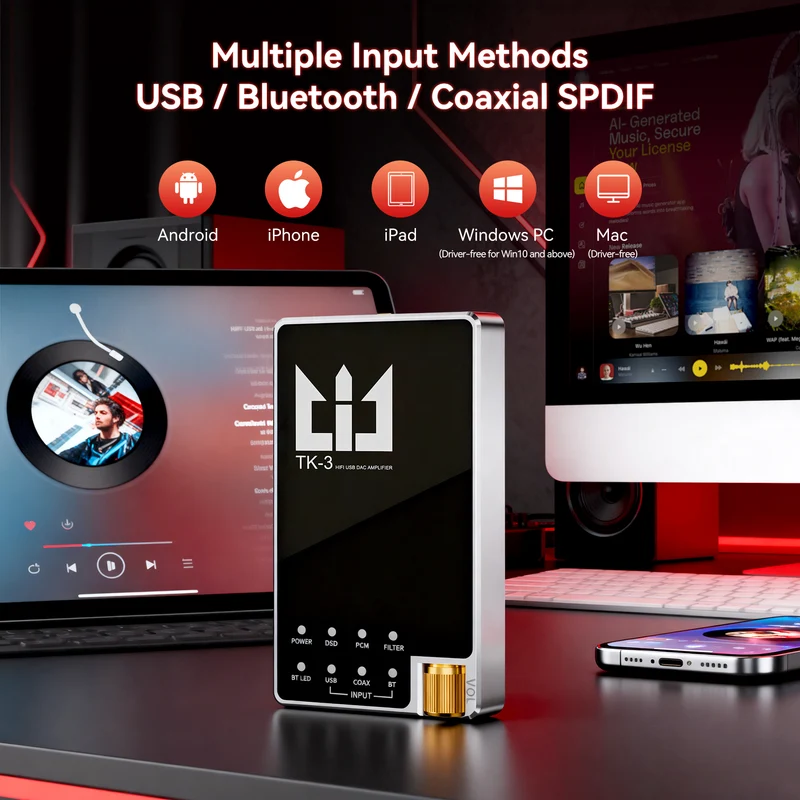

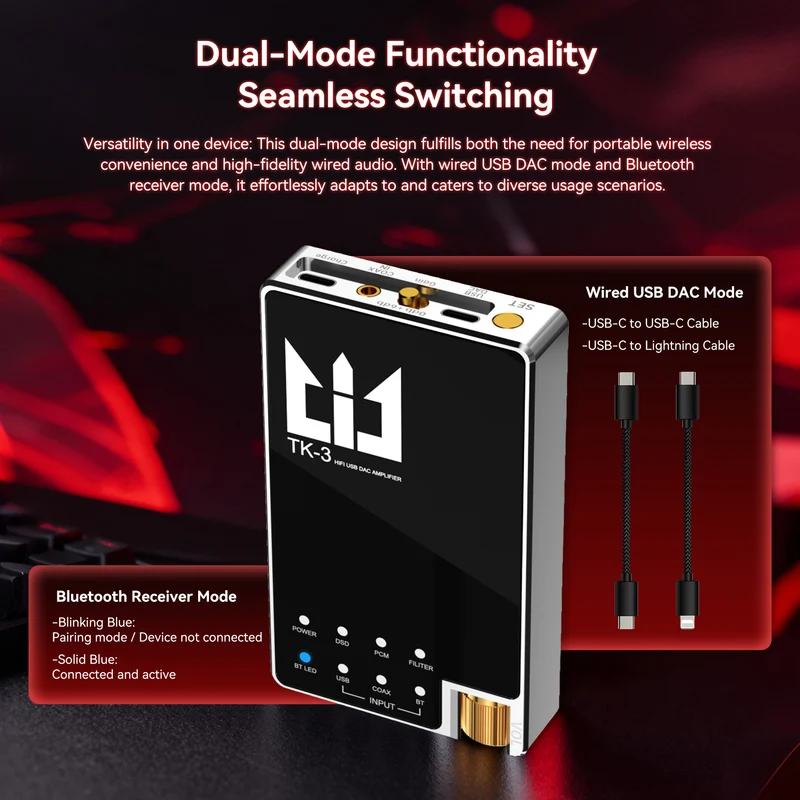

Inputs: USB/Bluetooth/Coaxial SPDIF
Frequency Response Range: 10Hz–50kHz
THD+N Distortion: ≈0.0008% (1kHz, A-weighted)
Signal-to-Noise Ratio: -120dB
Maximum Output Power: 1200mW (L+R, 32Ω)
Maximum output voltage: 10V

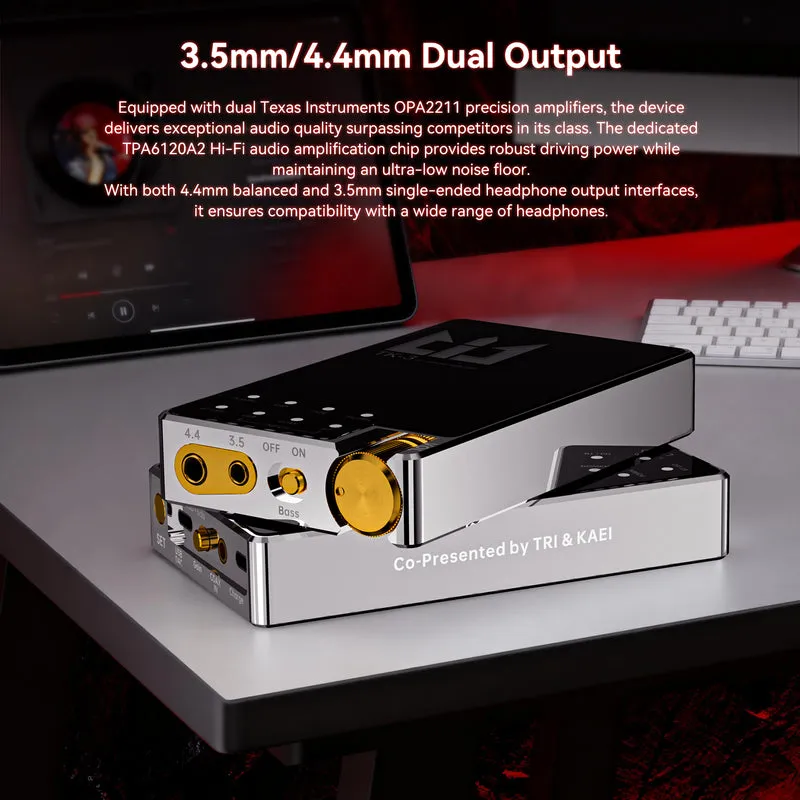

Headphone impedance support: 6 - 600Ω

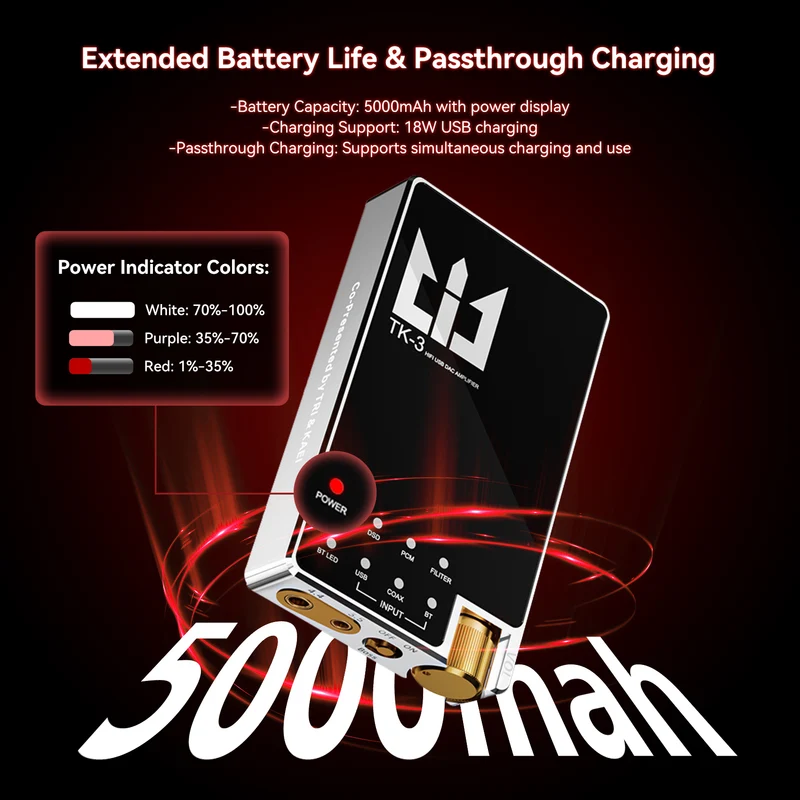

Battery Capacity: 5000mAh with power display support, supports separate charging while in use
Charging Support: 18W USB (supports bypass charging and simultaneous use while charging)
Dimensions: Approximately 6.8 × 11 × 1.9cm
Weight: Approximately 220 grams

TRI TK3 PRODUCT MANUAL. PDF
