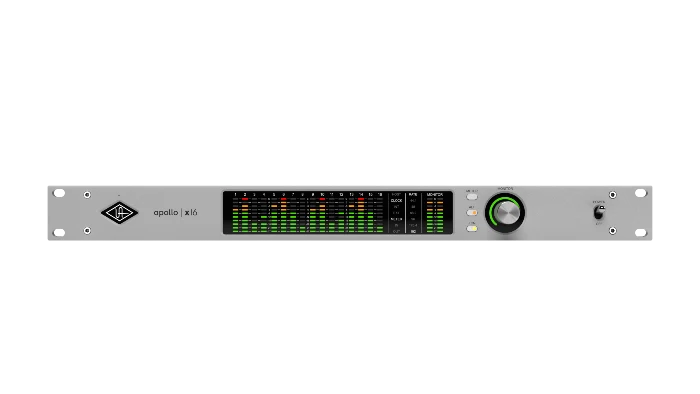

Universal Audio Apollo x16 Gen 2 Essentials+

18 x 20 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz
• 6-Core SHARC DSP for internal UAD real-time processing
• Auto Gain function
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Built-in talkback microphone
• Support of surround formats up to 7.1 with speaker calibration and downmix
• Dual Crystal Clocking for a low-jitter environment and pure, artefact-free recordings as well as stable stereo imaging
• Includes Essentials+ Plug-in Bundle for Mac/Windows
• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
• Up to 4 Apollos cascadable with Thunderbolt connection
• Format: 19"/1U
• Includes external power supply unit

Connectors:

• 16 Line inputs Sub-D25
• 2 Monitor outputs XLR
• 16 Line outputs Sub-D25
• AES/EBU input and output
• Word Clock input and output BNC
• 2 Thunderbolt 3
